Product Description

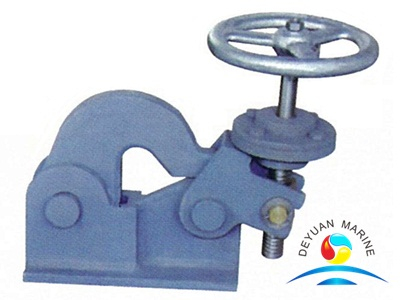

Good Price Cast Steel Marine Watertight Swivel Type Anchor Releaser CB 289-81
The Marine Swivel Type Anchor Releaser is the device of emergency abandon ship .Good Price Marine Anchor Releaser is made by high quality cast steel with the excellent working performance .
There are three type of Marine Watertight Type Anchor Releaser .They are crew type anchor releaser, marine watertight swivel type anchor releaser and latch type anchor releaser .
Their main function of Cast Steel Marine Watertight Swivel Type Anchor Releaser is when the ship anchored on the sea. Specially when we meet the condition need emergency anchor.
If the anchor machine malfunction can't timely weigh anchor .That will threaten the safety of the vessel .The crews must to control the chain locker lateral cut operation immediately. Make the end link and cut function cut off to ensure safe navigation of the ship.
Therefore the Cast Steel Marine Swivel Type Anchor Releaser is the important part of the anchor equipment.
We have different size of the Cast Steel Swivel Type Anchor Releaser if you have any other requirement please contact us .We will offer you the Good Price Watertight Swivel Type Anchor Releaser.
More information of Good Price Cast Steel Swivel Type Anchor Releaser please check below data sheet for your reference .
Dia. of chain | A | D | L | L1 | L3 | H | H2 | Weight Kg |
25~34 | 120 | 200 | 228 | 90 | 140 | 260 | 80 | 20 |
37~43 | 140 | 250 | 243 | 90 | 145 | 300 | 96 | 36 |
46~53 | 180 | 320 | 327 | 125 | 197 | 380 | 120 | 78 |
57~67 | 220 | 400 | 390 | 140 | 225 | 480 | 140 | 104 |
72~82 | 235 | 400 | 425 | 150 | 250 | 510 | 148 | 149 |
87~102 | 250 | 400 | 457 | 160 | 272 | 560 | 150 | 183 |
107~122 | 270 | 400 | 485 | 175 | 285 | 630 | 170 |
