Product Description

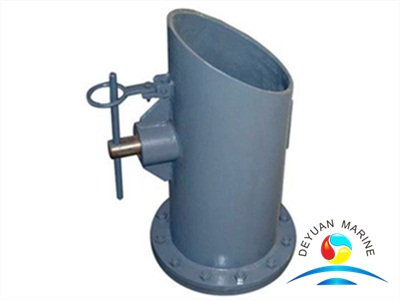

DIN 81906 German Standard Anchor Releaser Mooring Equipment
Type: Anchor Releaser
Brand: Deyuan Marine
Dia: 36-120mm
Standard: DIN, ISO
Material: Cast steel, stainless steel
Processing: Casting, Forging, Welding
Surface: Polished/ Galvanized
DIN81906 Anchor Releaser is an anchor releasing device, when a ship in an emergency, this Anchor Releaser can help the ship get out of danger.
DIN81906 Anchor Releaser Certificate: CCS, DNV, ABS, LR, GL, KR, BV, RINA etc.
Other marine anchor releaser like Screw Type Anchor Releaser, Dog Type Cable Clenches Anchor Releaser JIS F 2025-92, Marine Simple Cable Anchor Releaser CB*531-66, Watertight Swivel Type Anchor Releaser CB887-77 are available, please contact us directly if you have interests.
| China . Dia. | Φd1×s1 | Φd2 | l1≈ | u1 | u1 | u2 |
| 36 38 40 42 44 46 | 273x12,5 | 375 | 735 | 75 | 10 | 75 |
| 48 50 52 54 56 | 323,9x14,2 | 440 | 835 | 95 | 12 | 90 |
| 58 60 62 64 66 68 | 406,4x16 | 540 | 995 | 110 | 14 | 95 |
| 70 73 76 78 81 | 508x17,5 | 645 | 1245 | 105 | 15 | 100 |
| 84 87 90 92 | 508x17,5 | 645 | 1245 | 130 | 15 | 150 |
| 95 97 100 102 105 | 610x20 | 754 | 1430 | 130 | 18 | 150 |
| 107 111 114 | 610x20 | 754 | 1430 | 170 | 18 | 185 |
| 117 120 122 124 127 | 711x22,2 | 856 | 1615 | 170 | 20 | 185 |
| 130 132 137 | 813x22,2 | 958 | 1790 | 170 | 20 | 185 |
| 142 147 152 | 914x25 | 1060 | 1790 | 190 | 22 | 200 |
