Product Description

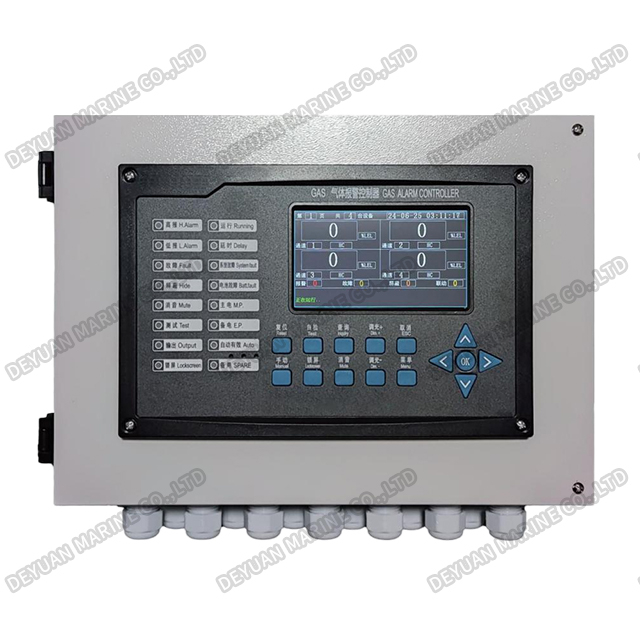

GAS-1F Wall Type Gas Alarm Controller
Product Introduction
The Marine Wall Type Gas Alarm Controller is a robust, surface-mounted safety monitoring system designed for reliable gas detection in critical shipboard areas. Engineered to withstand harsh maritime environments, this controller is the central hub for monitoring combustible, toxic, and oxygen-depletion hazards in enclosed spaces such as engine rooms, pump rooms, and cargo holds.
Constructed with marine-grade materials and high ingress protection (IP66/IP67), it offers excellent corrosion, vibration, and moisture resistance for long-term durability. Featuring a clear visual display and intuitive controls, it enables real-time gas concentration monitoring, configurable alarm thresholds, multi-channel sensor input, and seamless integration with vessel-wide alarm systems. With powerful audible-visual alarms and fail-safe communication protocols, it ensures prompt crew response and full compliance with SOLAS, IMO, and classification society standards, providing continuous protection against gas-related incidents.

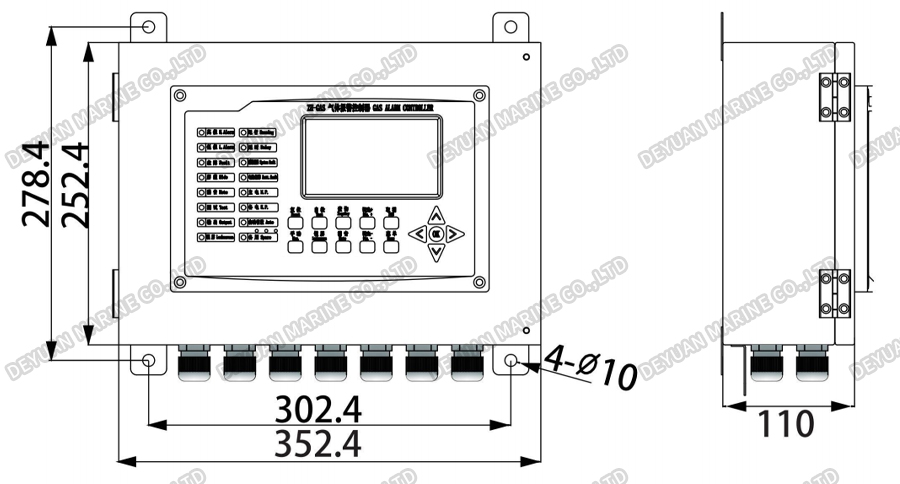

Drawing
Technical Data
| Response Time | ≤10s |
| Contact Output | Passive Contact 2A/AC220V |
| Working Mode | Continuous work |
| Main Power | AC220V±10%、50Hz±5% |
| Emergency Power | DC24V（+30%~-25%） |
| Signal Input | 4-20mA |
| Operation Mode | Touch&Button |
| Requirements for the connection line between the detector and the controller | ≥3×1.5mm² |
| Communication distance between detector and controller | ≤1000m |
Gas Detection & Alarm System
Gas Detection & Alarm System Connection Diagram
