Product Description

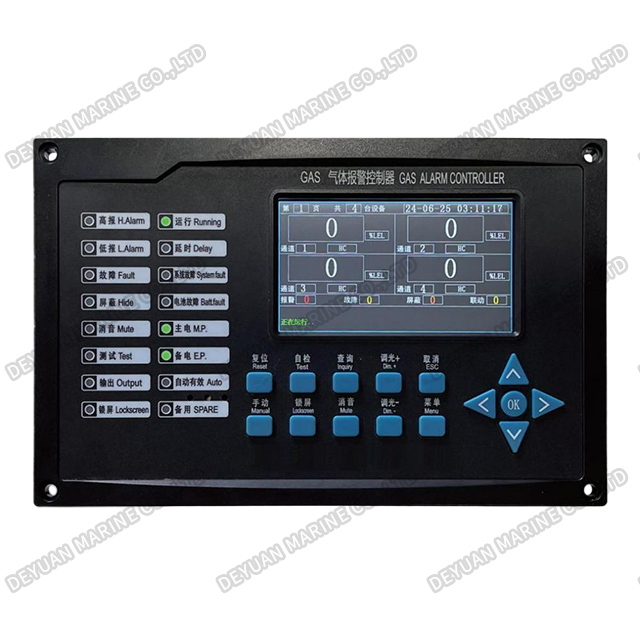

GAS-1F Flush Type Gas Alarm Controller
Product Introduction
The Marine Flush Type Gas Alarm Controller is a vital safety solution engineered for seamless integration into shipboard control panels. Designed to provide centralized monitoring and response for gas detection systems, this controller features a sleek, low-profile design that mounts flush within console surfaces, saving critical space and ensuring a professional, protected installation.
Key benefits include its rugged, marine-grade construction that resists corrosion, vibration, and moisture, guaranteeing reliable performance under harsh operational conditions. It offers intuitive operation with a clear visual interface, real-time status indicators, configurable alarm thresholds, and seamless connectivity with remote gas sensors. Meeting stringent SOLAS, IMO, and classification society standards, this controller enhances safety by delivering timely audible-visual alerts for combustible, toxic, or oxygen-deficient environments, empowering crews to take immediate preventive actions in engine rooms, cargo holds, and other critical zones.

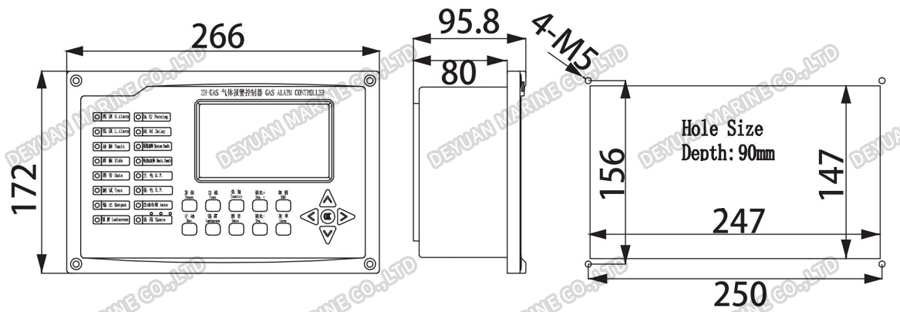

Drawing
Technical Data
| Response Time | ≤10s |
| Contact Output | Passive Contact 2A/AC220V |
| Working Mode | Continuous work |
| Main Power | AC220V±10%、50Hz±5% |
| Emergency Power | DC24V（+30%~-25%） |
| Signal Input | 4-20mA |
| Operation Mode | Touch&Button |
| Requirements for the connection line between the detector and the controller | ≥3×1.5mm² |
| Communication distance between detector and controller | ≤1000m |
Gas Detection & Alarm System
Gas Detection & Alarm System Connection Diagram
