Product Description

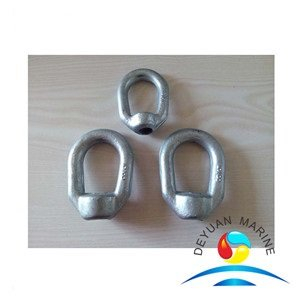

G400 Forged Carbon Steel Hot Dip Galvanized Eye Nuts
| Size | Wll | Dimensions(in) | Weight | ||||||
| (in) | (lbs) | A | C | D | E | F | S | T | (lbs) |
| 1/4 | 520 | 1 1/4 | 3/4 | 1 1/16 | 21/32 | 1/2 | 1/4 | 1 11/16 | 0.09 |
| 5/16 | 850 | 1 1/4 | 3/4 | 1 1/16 | 21/32 | 1/2 | 1/4 | 1 11/16 | 0.09 |
| 3/8 | 1250 | 1 5/8 | 1 | 1 1/4 | 3/4 | 9/16 | 5/16 | 2 1/16 | 0.18 |
| 7/16 | 1700 | 2 | 1 1/4 | 1 1/2 | 1 | 13/16 | 3/8 | 2 1/2 | 0.29 |
| 1/2 | 2250 | 2 | 1 1/4 | 1 1/2 | 1 | 13/16 | 3/8 | 2 1/2 | 0.29 |
| 5/8 | 3600 | 2 1/2 | 1 1/2 | 2 | 1 3/16 | 1 | 1/2 | 3 3/16 | 0.58 |
| 3/4 | 5200 | 3 | 1 3/4 | 2/8 | 1 3/8 | 1 1/8 | 5/8 | 3 7/8 | 1 |
| 7/8 | 7200 | 3 1/2 | 2 | 2 5/8 | 1 5/8 | 1 5/16 | 3/4 | 4 5/16 | 1.7 |
| 1 | 10000 | 4 | 2 1/4 | 3 1/16 | 1 7/8 | 1 9/16 | 7/8 | 5 | 2.75 |
| 1 1/8 | 12300 | 4 | 2 1/4 | 3 1/16 | 1 7/8 | 1 9/16 | 7/8 | 5 | 2.75 |
| 1 1/4 | 15500 | 4 1/2 | 2 1/2 | 3 1/2 | 1 15/16 | 1 7/8 | 1 | 5 3/4 | 3.85 |
| 1 3/8 | 18500 | 5 | 2 3/4 | 2 3/4 | 2 | 2 | 1 1/8 | 6 1/4 | 5 |
| 1 1/2 | 22500 | 5 5/8 | 3 1/8 | 4 | 2 3/8 | 2 1/4 | 1 1/4 | 6 3/4 | 6.7 |
| 2 | 40000 | 7 | 4 | 6 1/4 | 4 | 3 3/8 | 1 1/2 | 10 | 18.7 |
