Product Description

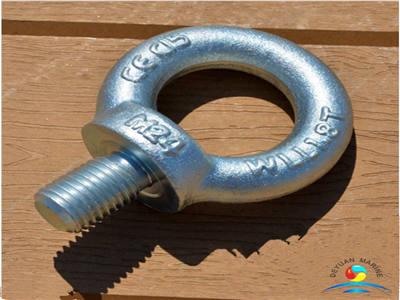

DIN580 Drop Forged Carbon Steel Galvanized Lifting Eye Bolts
| Size(mm) | WLL（t) | Weight 100pcs (lbs) | Dimensions(mm) | ||||||
| d1 | d2 | d3 | b | e | h | k | |||
| M6 | 0.14 | 11 | 17 | 28 | 16 | 13 | 6 | 17 | 6 |
| M8 | 0.14 | 13 | 20 | 36 | 20 | 15 | 6 | 18 | 8 |
| M10 | 0.23 | 24 | 25 | 45 | 25 | 18 | 8 | 22 | 10 |
| M12 | 0.34 | 40 | 30 | 54 | 30 | 22 | 10 | 26 | 12 |
| M14 | 0.49 | 63 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M16 | 0.7 | 62 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M20 | 1.2 | 99 | 40 | 72 | 40 | 30 | 12 | 35 | 16 |
| M22 | 1.5 | 148 | 45 | 81 | 45 | 35 | 14 | 40 | 18 |
| M24 | 1.8 | 192 | 50 | 90 | 50 | 38 | 16 | 45 | 20 |
| M27 | 2.5 | 194 | 50 | 90 | 50 | 38 | 18 | 45 | 20 |
| M30 | 3.6 | 366 | 65 | 108 | 60 | 45 | 18 | 55 | 24 |
| M33 | 4.3 | 380 | 65 | 108 | 60 | 45 | 22 | 55 | 24 |
| M36 | 5.1 | 585 | 75 | 126 | 70 | 55 | 22 | 65 | 28 |
| M39 | 6.1 | 618 | 75 | 126 | 70 | 55 | 26 | 65 | 28 |
| M42 | 7 | 889 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M45 | 8 | 938 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M48 | 8.6 | 1408 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M52 | 9.9 | 1456 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M56 | 11.5 | 1942 | 110 | 184 | 100 | 80 | 38 | 95 | 42 |
| M64 | 16 | 2736 | 120 | 206 | 110 | 90 | 42 | 100 | 48 |
Ring-Nut DIN582
| Size(mm) | WLL（t) | Weight 100pcs (lbs) | Dimensions(mm) | |||||
| d1 | d2 | d3 | e | h | k | |||
| M6 | 0.14 | 11 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M8 | 0.14 | 11 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M10 | 0.23 | 20 | 25 | 45 | 25 | 10 | 22 | 10 |
| M12 | 0.34 | 35 | 30 | 54 | 30 | 11 | 26 | 12 |
| M16 | 0.7 | 53 | 35 | 63 | 35 | 13 | 30 | 14 |
| M20 | 1.2 | 79 | 40 | 72 | 40 | 16 | 35 | 16 |
| M22 | 1.5 | 128 | 45 | 81 | 45 | 18 | 40 | 18 |
| M24 | 1.8 | 159 | 50 | 90 | 50 | 20 | 45 | 20 |
| M27 | 2.5 | 154 | 50 | 90 | 50 | 20 | 45 | 20 |
| M30 | 3.6 | 291 | 65 | 108 | 60 | 25 | 55 | 24 |
| M33 | 4.3 | 287 | 65 | 108 | 60 | 25 | 55 | 24 |
| M36 | 5.1 | 459 | 75 | 126 | 70 | 30 | 65 | 28 |
| M39 | 6.1 | 446 | 75 | 126 | 70 | 30 | 65 | 28 |
| M42 | 7 | 686 | 85 | 144 | 80 | 35 | 75 | 32 |
| M45 | 8 | 671 | 85 | 144 | 80 | 35 | 75 | 32 |
| M48 | 8.6 | 1108 | 100 | 166 | 90 | 40 | 85 | 38 |
| M52 | 9.9 | 1092 | 100 | 166 | 90 | 40 | 85 | 38 |
| M56 | 11.5 | 1476 | 110 | 184 | 100 | 45 | 95 | 42 |
| M64 | 16 | 2052 | 120 | 206 | 110 | 50 | 105 | 48 |
