Product Description

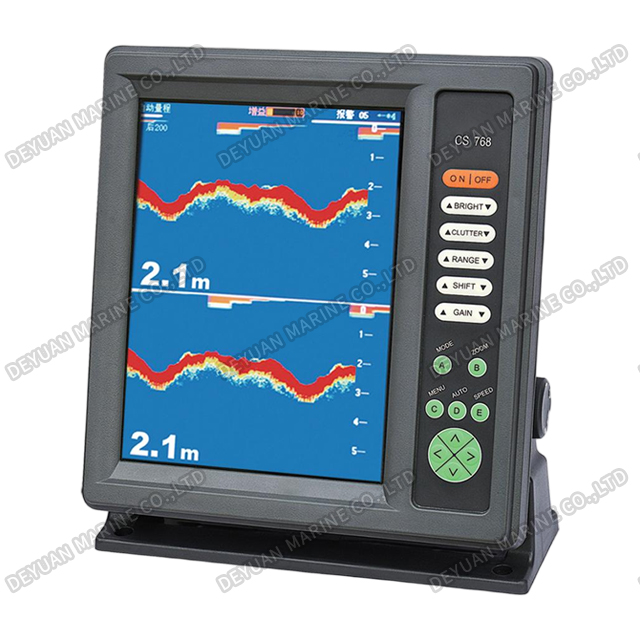

Dual Frequcency 10 Inch Digtial Fishfinder
Product introduction:
As the third generation of dual frequency fish finder, CS768 support by kinds of advanced technique,like dual core processor, dual frequency detection, multiple power and larger screen. It will help you gather more but less expense. Transmit power is 600- 1000W and the maxim depth is up to 800m. The high resolution 10.4 LCD can display 640*480 pixels color picture.
Characteristic:
1. Dual Frequency, Intelligent measurement, Multiple transmit power
2. High Contrast ratio 10.4-inch color LCD with viewing angles and brightness adjustment
3. Auto range: Automatically select the range based on water
4. Auto gain: automatically change based on water
5. Shallow water alarm to can make sure your safety navigation
6. Great anti interference function
7. Zoom & Extension function: Bottom extension mode , Auto zoom mode, Manual zoom mode
Specifications:
| Host dimensions | 278*294*109mm |
| Transducer | 50/200kHz, Φ80 |
| Screen size | 10.4-inch |
| Transmission power | 600 ~ 1000W(RMS) |
| Power supply | DC24V ( ±20%) |
| Power consumption | ﹤50W |
| Humidity | 10 ~ 90% relative humidity |
| Measurement depth | 0 ~ 800m |
| Measurement Accuracy | 1% of full scale, minimum precision 0.3m |
| Measurement Range | 20 levels: 5, 10, 15, 20, 30, 40, 50, 60, 80, 100, 125, 150, 180, 200, 250, 300, 400, 500, 600, 800 |
| Operating Frequency | 50/200 kHz |
| Transducer Beam Angle | 33°conical |
| Display | Color LCD screen with adjustable backlight brightness |
| Other Features | Shallow water alarm, fish school alarm, anti-interference function |
