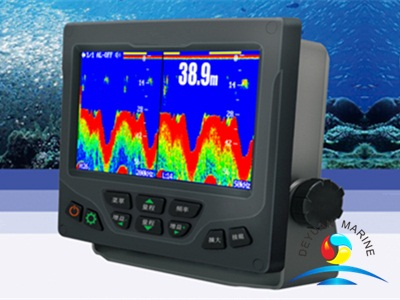

7 Inch TFT Dual-frequency Fish Finder

Introduction:

FS117 7 inch LCD fish finder is of high sensitivity and advanced detecting software which can display the water bottom landform, depth and figures accurately.

*Dual-channels 200kHz

*Multi-installation modes

*Modern panel easy control

*Mininum detectable depth 0.3m

Item	Specification	Item	Specification
Frequency	Dual-channel 200kHz	Alarm types	shallow
Range	2.5-200m	Alarm beeper	Buzzer(switch able),flashing
Auto range	yes	Power supply	DC24V(19-33V),＜20w
Min Depth	0.3m	Temperature	0-50℃，IEC60945
Output power	300w	Water proof	IP52,IEC60529
Echo Levels	8colors signal levels	Weight	1.5kg
Time scale	On screen 30s time	Measurement	188(w)164(H)65(D)mm
	scale
