Cargo Hold Cleaning Guide Rod System

Brand: Deyuan Marine
Characteristic: Telescopic
Flow: 50L/min
Pressure: 7bar
Rod Diameter: 38mm
Rod Length: 3m~3.25m
Rod Qty: 6
Max.Length: 18m
Availability:

Product Description

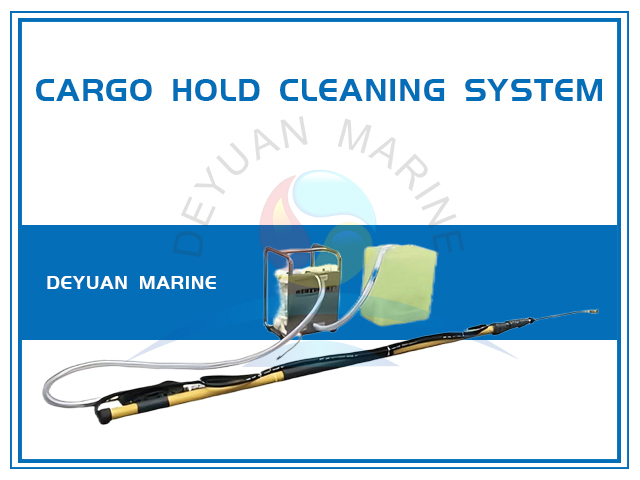

Cargo Hold Cleaning Guide Rod System

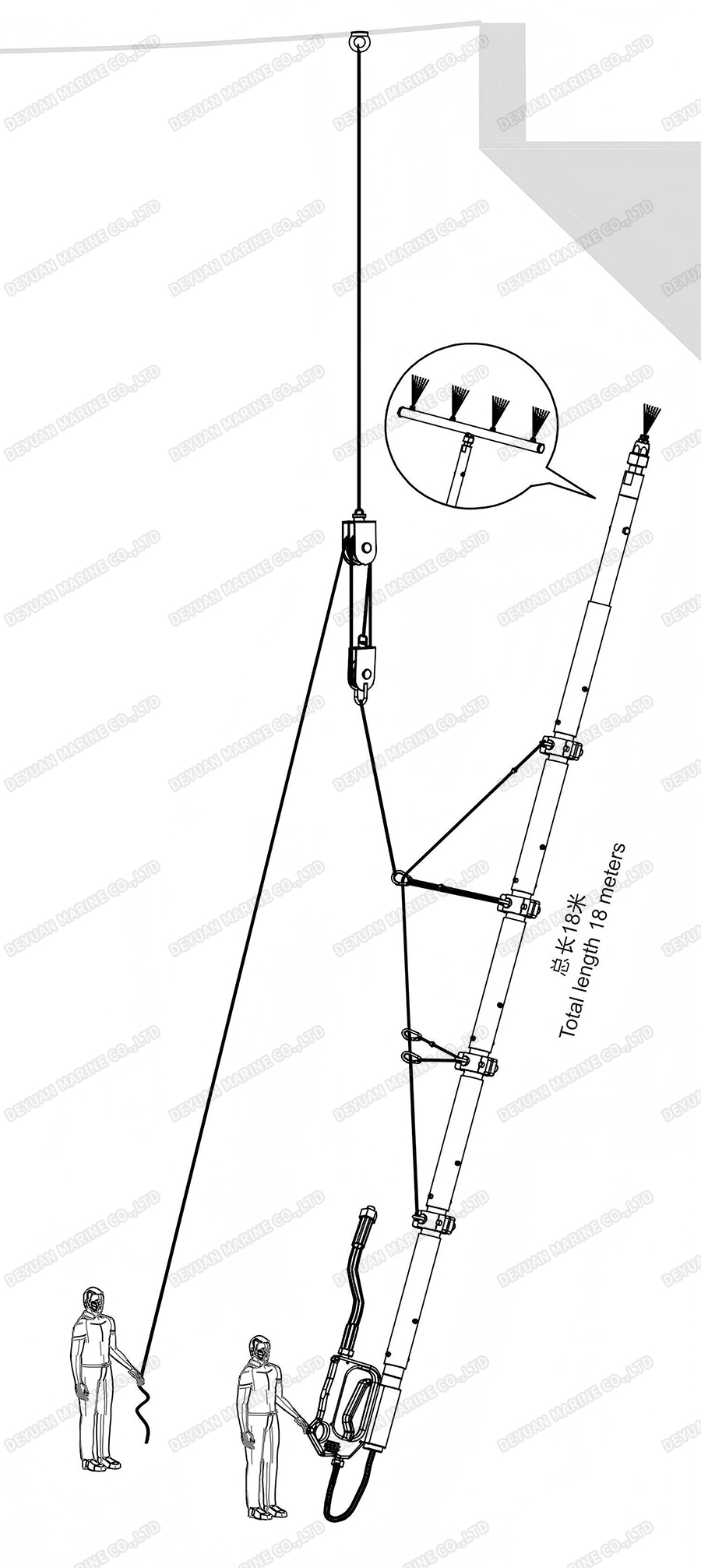

Cargo hold cleaning guide rod system WS20, guide rod is up to 18 meters in length, connected to high pressure cleaning machine or chemical pump HCP50 for better cleaning effect.


Cargo Hold Cleaning Guide Rod System-Deyuan Marine 2

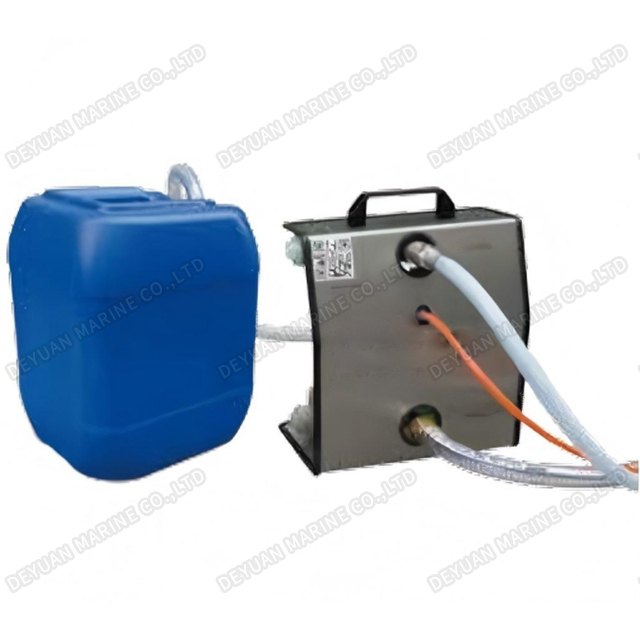

Chemical Pump

Technical   Data

HCP50

Pressure

Bar/psi

7/101.5

Flow

L/min

50

Weight

Kg

15

Dimensions

mm

370X310X400




Cargo Hold Cleaning Guide Rod System

Technical Data

WS20

Rod Dimensions

mm

38

Rod Length

mm

3000~3250

Rod Quantity

pcS

6

Overall Length

m

18

Weight

Kg

60

Pulley

pcS

2

Rope Length

m

40

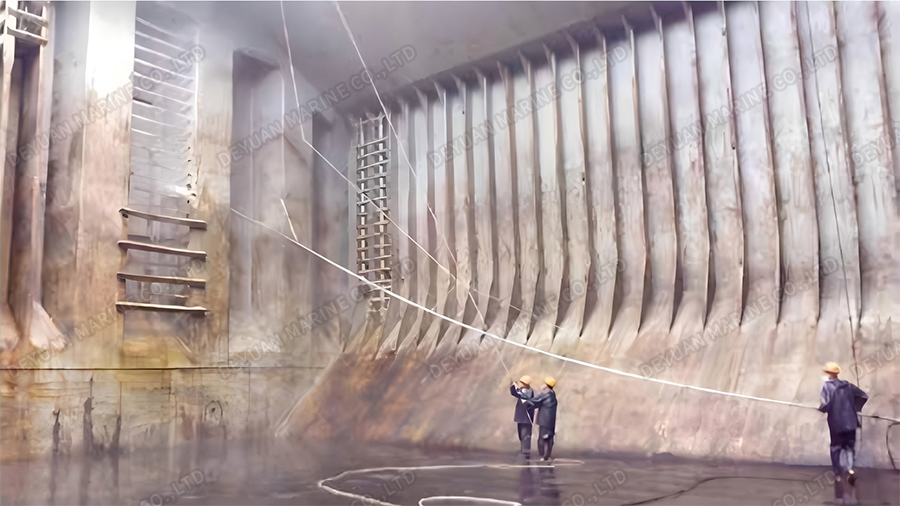

Cargo Hold Cleaning Guide Rod System-Deyuan Marine 3
