Product Description

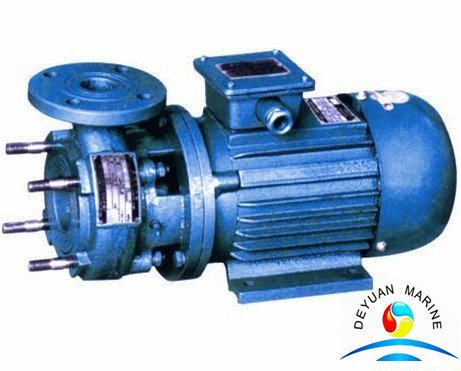

CCS approval PWF series marine horizontal type crushing pump with motor
PWF series of marine crushing pump is an open impeller, horizontal centrifugal pump. The front of the pump inlet set knife, which impeller blades and the inner end of the blade with shear and break function to achieve ≤ 85℃ domestic sewage (excluding metal and hard material) solid soft soil crushing and conveying , Such as food residue, melon shell, paper excrement, etc., also apply to the crushing and transportation of heavy oil at low temperature. The maximum solid particles diameter after crushing cycle not more than 5mm.
Specification:
| Item | Model | 2.5PWF-20 | 2.5PWF-10 | 2.0PWF-5 | ||||
| Unit | ||||||||
| Capacity | m3/h | 20 | 24 | 10 | 13 | 5 | 6.1 | |
| Pressure | MPa | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| Elec motor | Power | kW | 2.2 | 1.5 | 1.1 | |||
| Speed | r/min | 2840 | 3470 | 2840 | 3470 | 2820 | 3460 | |
| Voltage | V/Hz | 380/50 | 440/60 | 380/50 | 440/60 | 380/50 | 440/60 | |
| Inlet | mm | 65 | 65 | 50 | ||||
| Outlet | mm | 40 | 32 | 32 | ||||
| Weight | kg | 37 | 32 | 28 | ||||
| Dimention | mm | 412╳275╳235 | 382╳275╳230 | 349╳260╳210 | ||||
