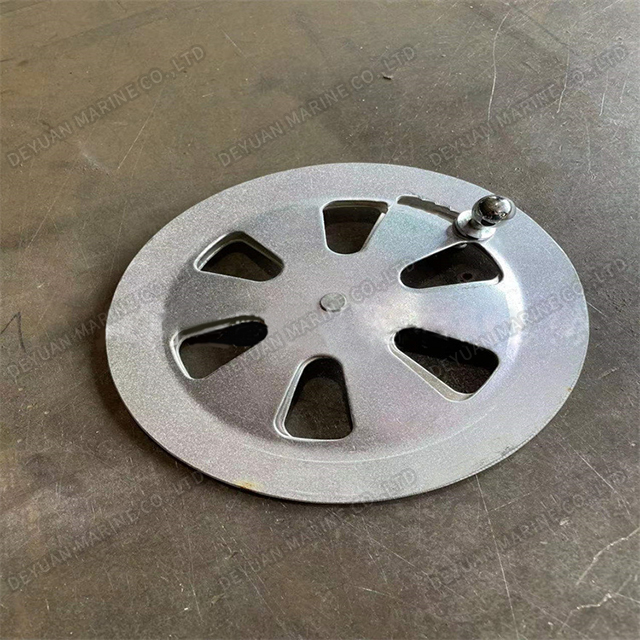

Aluminum Ventilation Grill Round Closeable CB/T 462-1996 Marine Type A

Material: Aluminum
Nominal Size: 100~400
Shape: Round type
Closeable: Yes
Weight: 0.09~0.96kg
Thickness: 1.5/2
Standard: CB/T 462-1996
Availability:

Product Description

Aluminum Ventilation Grill Round Closeable CB/T 462-1996 Marine Type A


CB/T 462-1996 type A is marine ventilation grill with round shape thin aluminum material, suitable for many kinds of vessels. It is so light that almost increase no weight to the boat.

The grill is closeable since there is an air regulating damper.


Structure

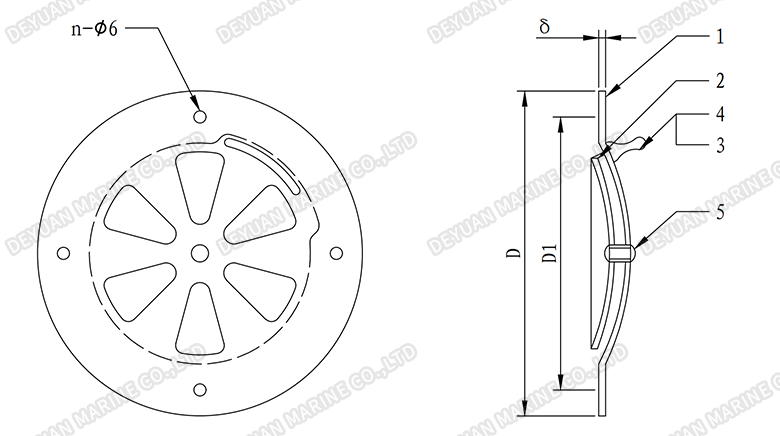

CBT 462-1996 Type A- Aluminum Ventilation Gril Structure

1. Front panel

2. Air regulation plate

3. Handle

4. Bolt

5. Rivet



Specifications

Main Size Bolt Qty Weight kg
DN D D1 δ
100 160 144 1.5 4 0.03
125 185 169 0.07
150 210 194 0.12
175 235 219 6 0.16
200 260 244 2 0.21
250 310 294 0.41
300 360 344 8 0.59
350 410 394 0.77
400 460 444 0.96
