Aluminum Ventilation Grill Rectangular Closeable CB/T 462-1996 Marine Type B

Material: Aluminum
Nominal Size: 100~400
Shape: Rectangular type
Closeable: Yes
Weight: 0.29~0.81kg
Thickness: 2/2.5
Standard: CB/T 462-1996
Availability:

Product Description

Aluminum Ventilation Grill Rectangular Closeable CB/T 462-1996 Marine Type B


CB/T 462-1996 type B is marine ventilation grill with rectangular shape thin aluminum material, suitable for many kinds of vessels. It is so light that almost increase no weight to the boat.

The grill is closeable since there is an air regulating damper.

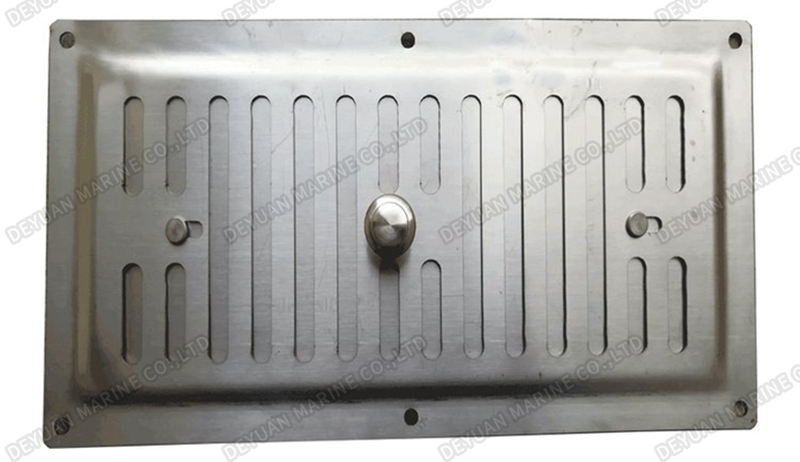

CBT 462-1996 Type B- Aluminum Ventilation Grill- Rectangular Closeable

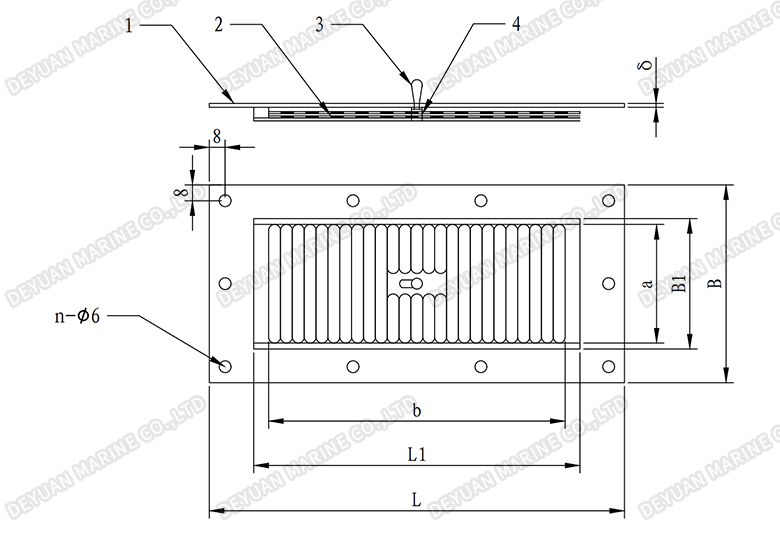

Structure


CBT 462-1996 Type B- Aluminum Ventilation Grill Structure-DEYUAN MARINE

1. Front panel

2. Air regulation plate

3. Handle

4. Bolt

5. sliding chute

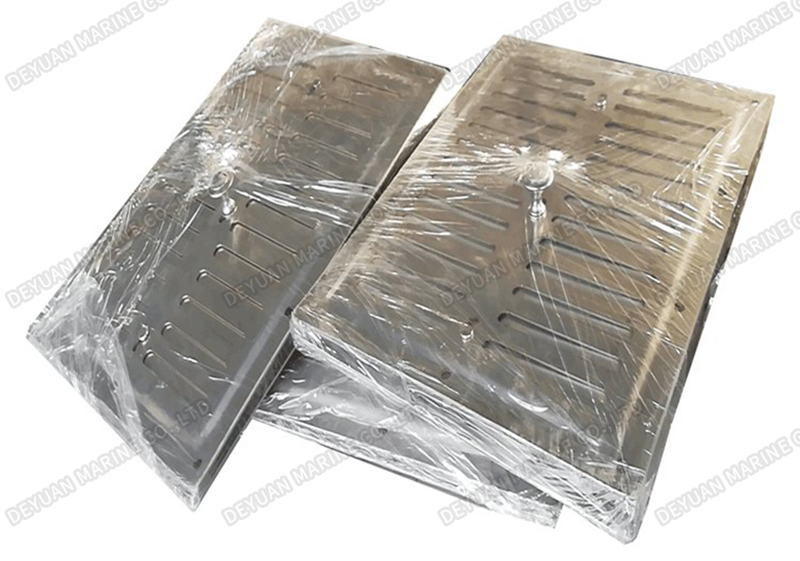

CBT 462-1996 Type B- Aluminum Ventilation Grill


Specifications

Main Size Bolt Weight kg
DN axb B1xL1 BxL δ n Type B Type C Type D
100 60x150 66x165 100x210 2 6 0.29 0.64 0.72
80x130 86x145 120x190
125 60x230 66x245 100x290 0.36 0.88 1.12
80x170 86x185 120x230
100x130 106x145 140x190
150 80x250 86x265 120x310 0.23 1.06 1.27
100x210 106x225 140x270
120x150 126x165 160x210
175 80x250 86x265 120x410 8 0.29 1.19 1.59
100x210 106x225 140x310
120x210 126x225 160x270
200 100x350 106x365 140x410 2.5 0.36 1.32 1.93
120x290 126x305 160x350
150x230 156x245 190x290
250 120x470 126x485 160x530 10 0.52 1.89 2.81
150x350 156x365 190x410
190x290 196x305 230x350
300 150x530 156x545 190x590 12 0.68 2.51 3.88
190x390 196x405 230x450
240x310 246x325 280x370
350 190x550 196x565 230x610 0.74 3.11 4.94
240x430 246x445 280x490
290x370 296x375 330x430
400 190x770 196x785 230x830 14 0.81 3.76 6.01
240x550 246x565 280x610
290x470 296x485 330x530
