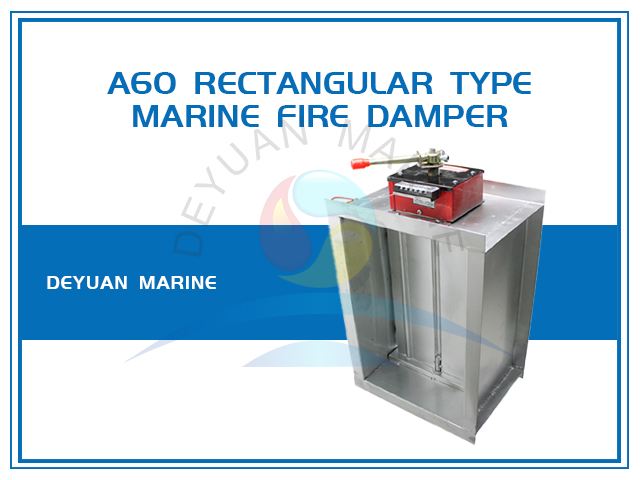

A60 Electric Rectangular Marine Fire Damper

Type: Rectangular
Fire rating: A60
Automatic: Temperature inductor
Electric: Close when loss power
Manual: Pull Line
Material: Q235A Steel
Nominal Size: DN100~DN1000

Product Description

A60 Electric Rectangular Marine Fire Damper

The A60 Marine Fire Damper is tested and approved for fitting to Class A60 Divisions of bulkheads and decks. It is constructed with stainless steel interlocking parallel blades and closes once overhigh temperature or loss of electric power connection. The A60 is fitted with an electrical thermal release device which includes a manual test switch that allows periodic operation of the damper for testing purposes.

Voltage supply:

DC24V/AC220V/AC110V,  can open and close the fire damper without electric power

Remote control:

Control room can remotely control the fire damper, by cutting off electric power in emergency, and open the fire damper again by reconnecting power.

Automatic  Protection:

If air within damper duct exceeding 70±3℃, or outside air temperature around duct near 95℃, the fusible link of damper will be broken, and the fire damper will close automatically.

Remote monitoring:

On/off signal output when the fire damper is open/close.

A60 Electric Rectangular Fire Damper

Note: Flange size of all fire damper can be customized according to client's requirement.

Supply scope

Fie Damper                          1 set

Electrical control box           1 set

Junction box                        1 set

For more information,pls contact us without any hesitate.
