848T Spreader Lifting Beam

Model: DLS-848/26/52
Lifting Distance: max.up to 26m
Height: 2600mm
Width: 1632mm
SWL: 848tons
Weight: 52t
Crane Lift: max. 900T
Lifting Wires: Max. 60°
Quality: high industrial level in China
Availability:
Inquire Add to Basket

Product Description

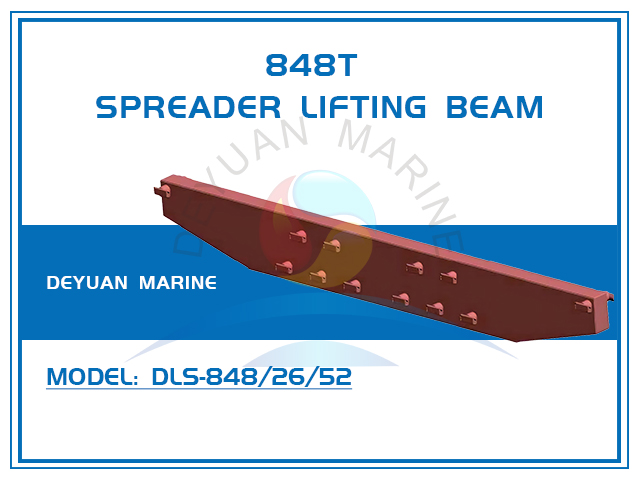

848T Spreader Lifting Beam


The DEYUAN Lashing and Lifting Spreader DLS-848/26/52, lifting points distance is upto 26m, with 848 tones safe working load capacity, and itself weights 52tons.

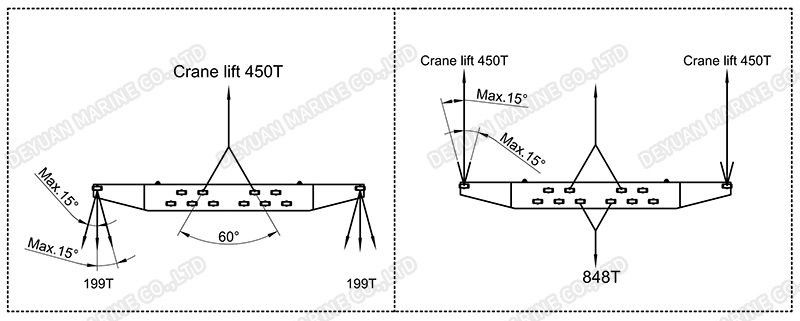

848T Spreader Lifting Beam 2

The spreader DLS-848/26/52 consists of a heavy duty truss beam and several hositing and lifting points, is sutiable for super heavy duty crane lifting applications

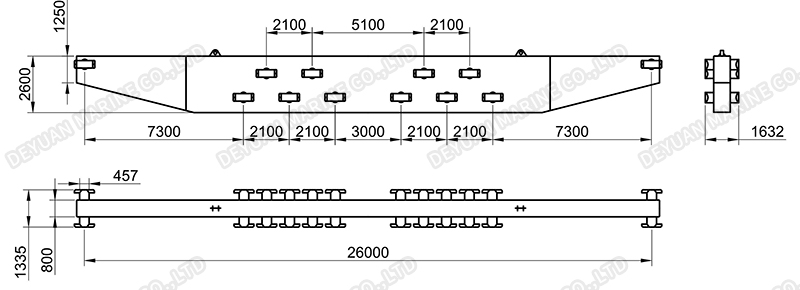

848T Spreader Lifting Beam

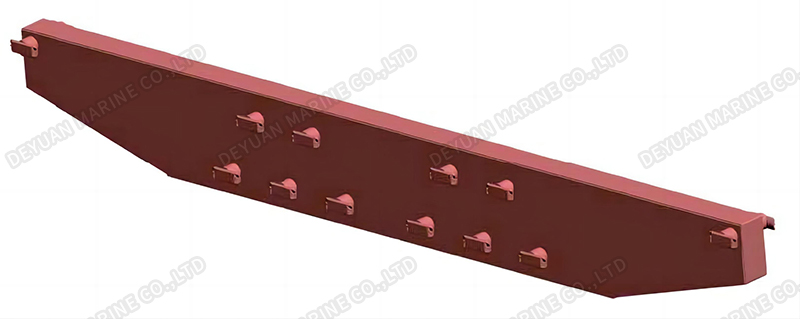

848T Spreader Lifting Beam 1

Previous:
Next:
Crane Hoisting Spreader Beam 848T Spreader Lifting Beam 848T Spreader Beam Super Heavy Duty Spreader Beam Super Heavy Duty Lifting Beam Crane Lifting Beam Crane Hoisting Spreader 26m Long Spreader Beam
Product Inquiry
Verify Code

Related Products

176T Spreader Lifting Beam
176T Spreader Lifting Beam
150T Spreader Lifting Beam
150T Spreader Lifting Beam

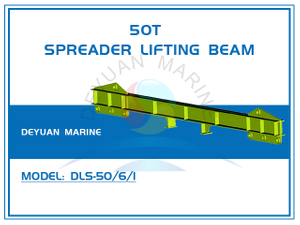

50T Spreader Lifting Beam
