150T Spreader Lifting Beam

Model: DLS-150/8/3.4
Operation Length: 7.2m/8m
Total Height: 1030mm
SWL: 150t
Weight: 3.4t
Crane Lift: max. 154T
Lifting Wires: Max. 60°
Quality: high industrial level in China
Availability:

Product Description

150T Spreader Lifting Beam


The DEYUAN Lashing and Lifting Spreader DLS-150/8/3.4, has feature that 8m length lifting point distance, 150 tones safe working load capacity, and it weights 3.4mts.


The spreader DLS-150/8/3.4 consists of a round pipe and 4 hoisting holes and 4 lifting holes, is quite simple in structure and have large lifting capacity, up to 150t.

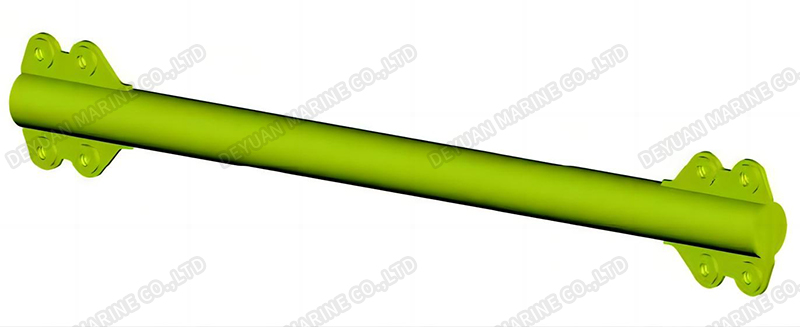

150t Spreader Lifting Beam 3

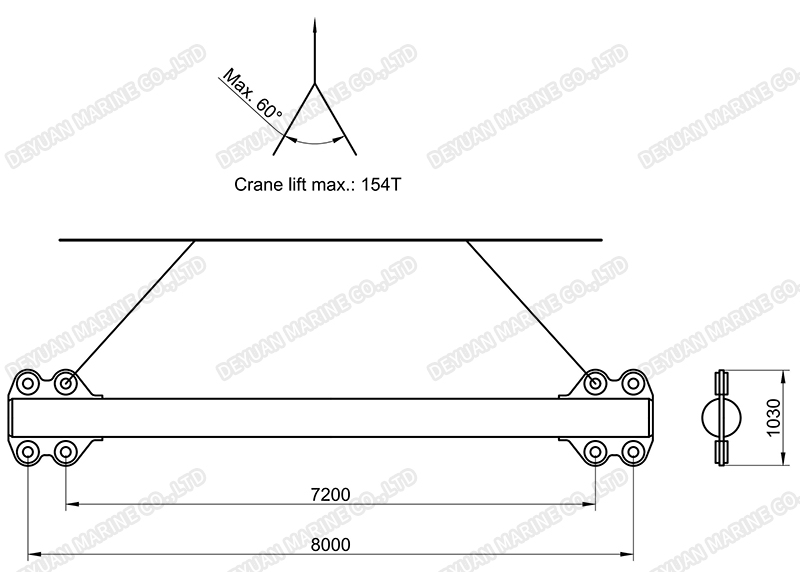

Because there are two groups of lifting points, so there are two lifting distance options: 8000mm and 7200mm, it makes more convenient for applications.



150t Spreader Lifting Beam 1


150t Spreader Lifting Beam 2
