Product Description

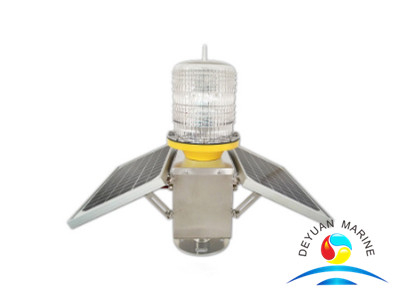

3NM-5NM+marine solar powered LED lights
This marine solar powered LED lights is a completely self-contained lantern,Two (2) solar panels are integrated into the assembly and it’s vertical angle is adjustable(45°~90°).
We design this solar LED lights with visual range from 3NM+ to 5NM+,lanterns’ ON/OFF button located interface, so there is no need to open the light, user could turn on/off light easily.
More solar marine lanterns with different visual range are available for option,if you are interested in any LED solar powered lights,pls donot hesitate to contact deyuan marine sales team for the catalog.
Main Specification | |
Light Characteristics | |
Light Source | LED |
Available Colors | Red, green, yellow, white, blue |
Intensity(cd) | 15cd (3nm),35cd (4nm),75cd(5NM) |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | >9 |
Flash Characteristics | Adjustable 256 IALA light characteristics |
Operation Mode | Dusk-to-dawn Automatically as standard. |
24hours operation as option | |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | 12Vdc |
Power(W) | 20W |
Circuit Protection | Integrated |
Solar Characteristics | |
Solar Module Type | Mono-crystalline Silicon |
Output(watts) | 20W (10W×4) |
Charging Regulation | Microprocessor controlled |
Battery Characteristics | |
Battery type | VRLA (Valve-regulated Lead Acid Battery) |
Battery Capacity (Ah) | 12 |
Nominal Voltage (V) | 12 |
Battery Service Life | Average 3 years |
Autonomy (hours) | Steady: 100 Flashing: 240 |
Physical Characteristics | |
Body Material | Polycarbonate |
Base Material | Powder-coated Die-casting aluminum |
Mounting | 3/4inch or 98×98×M10 |
Dimension(mm) | 300×192×440 |
Weight(kg) | 5.8 |
Product Life Expectancy | Average 5 years |
Environmental Factors | |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP67 |
Compliance | |
IALA | Signal colors comply to IALA E-200-1 |
Options Available | |
Charging port | Remote Control |
Bluetooth Remote | Auto/Manual toggle switch |
GPS synchronization | / |
