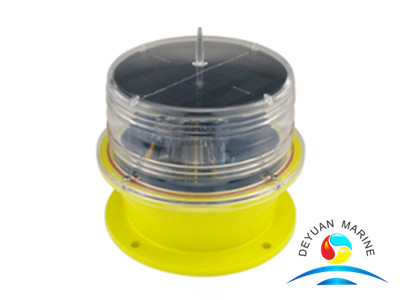

2-3NM+ LED Solar Powered Marine Lanterns for boat navigation

Origin: Made in China
Model: AH-LS/C-1
Visible: 2-3NM+
Color: Red, Green, Yellow (Amber), Blue Or White
Light Source: LED
Body Material: Aluminum, Polycarbonate (PC)
Delivery time: 3-15days
Packing: Export package
Brand: Deyuan Marine

Product Description

2-3NM+ LED Solar Powered Marine Lanterns for boat navigation




This LED solar lantern is designed as per the standard of IALA Recommendations E-200-1,adapting insert high efficient solar panels integrated design, cooperating with solar dedicated lithium ion battery as power supply.

This boat navigation lantern is a completely self-contained lantern,with full-sealed structure(IP68),a ON/OFF button under base make local control easier.Optional items for this LED solar lantern are External charger,Wireless remote control,Bluetooth remote control,Infrared remote control,GSM Monitoring,customer can choose them as per their special request.

More solar marine LED lights can be supplied,pls feel free to contact us for more information.



Main Specification

Light Characteristics

Light Source

LED

Available Colors

Red, Green, Yellow, White, Blue

Visible Range(NM)

2-3 (TC=0.74)

Horizontal Output(degrees)

360

Vertical Divergence(degrees)

7

Flash Characteristics

Adjustable Steady-burning/Flash mode

Operation Mode

Dusk-to-dawn Automatically (Built-in photocell)

LED Life Experience(hours)

>100,000

Electrical Characteristics

Operating Voltage

3.7Vdc

Power(W)

1.5

Circuit Protection

Integrated

Solar Characteristics

Solar Module Type

Monocrystalline Silicon

Output(watts)

2

Charging Regulation

Microprocessor controlled

Battery Characteristics

Battery type

Lithium ion battery

Battery Capacity (Ah)

8

Nominal Voltage (V)

3.7

Battery Service Life

Average 3 years

Autonomy (hours)

Steady:80

Flashing: 210

Physical Characteristics



Body Material

UV protected
Polycarbonate

Base Material

Powder-coated Die-casting aluminum

Mounting(mm)

190×190×12

Dimension(mm)

220 by 220 by 233

Weight(kg)

1

Product Life Expectancy

Average 5 years

Environmental Factors

Humidity

0~100%

Wind Speed

80m/s

Waterproof

IP68

Compliance

IALA

Singal colors complicant to IALA E-200-1

Options Available

Charging port

Remote Control

256 flashing light characteristics

Auto/Manual toggle switch
