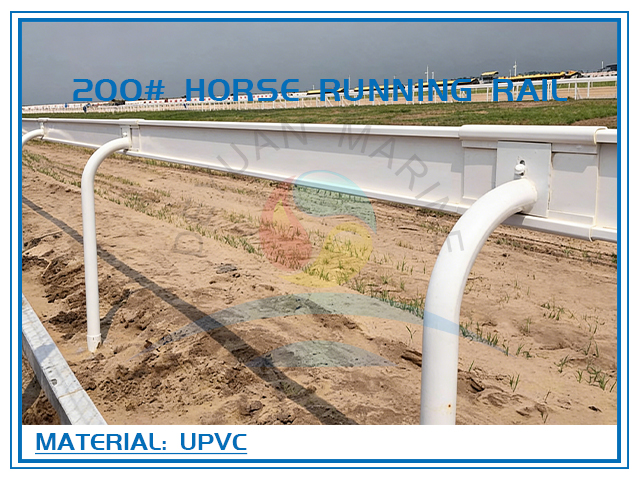

200# Horse Running Rail (Standard)

200# Horse Running Rail (Standard)

Product Introduction：

200# horse running rail, fence height: 1250 mm, spacing from post center to center: 2500 mm. The fence post is made of 63 mm high-strength carbon steel pipe with uniform diameter, fully hot-dip galvanized. The fence board adopts a 200 mm wide UPVC extruded profile, with good flexibility and high strength, can withstand high-intensity impact and rebound recovery. It has high safety and forms safety protection for riders and horses, and is a standard fence for large speed races held by equestrian clubs at home and abroad in recent years.

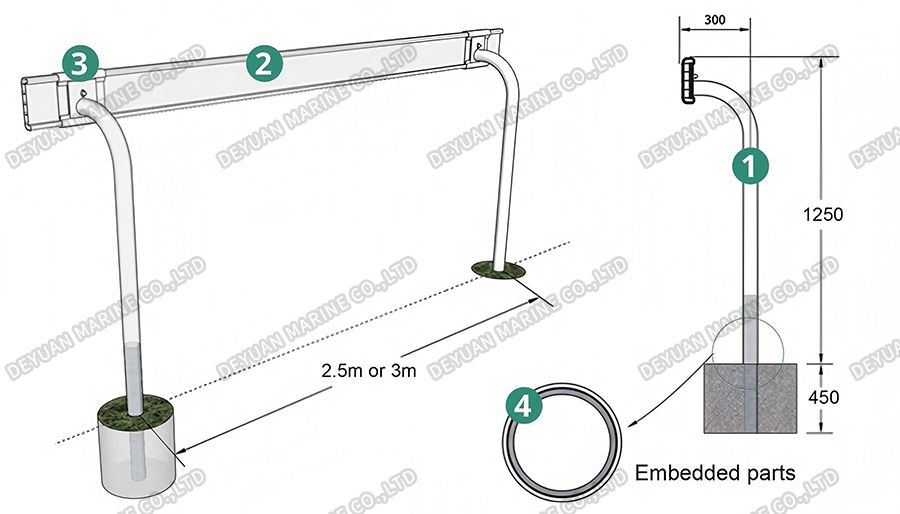

Drawing:

1. Post:

One-piece curved arc steel post, no elbow welding, fully hot-dip galvanized with white surface spray for double protection. Beautiful appearance, high strength, corrosion resistance, service life over 30 years.

2. Fence Board:

The fence board uses a modified uPVC outdoor environmental protection formula, with high weather resistance. The material is fade-free, yellowing-free, aging-free, cold-resistant, wear-resistant, highly flexible, and impact-resistant, and will not break in damage tests, making it very suitable for protecting riders and horses in running races.

3. Buckle:

Movable sleeve and snap-on connector, compact design, easy to install.

4. Embedded Parts:

The embedded parts and fence are designed separately for easy transportation and installation. The embedded parts are hot-dip galvanized, which are not easy to rust and have low maintenance costs.
