110# Horse Running Rail (Europe Standard)

110# Horse Running Rail (Europe Standard)

Product Introduction：

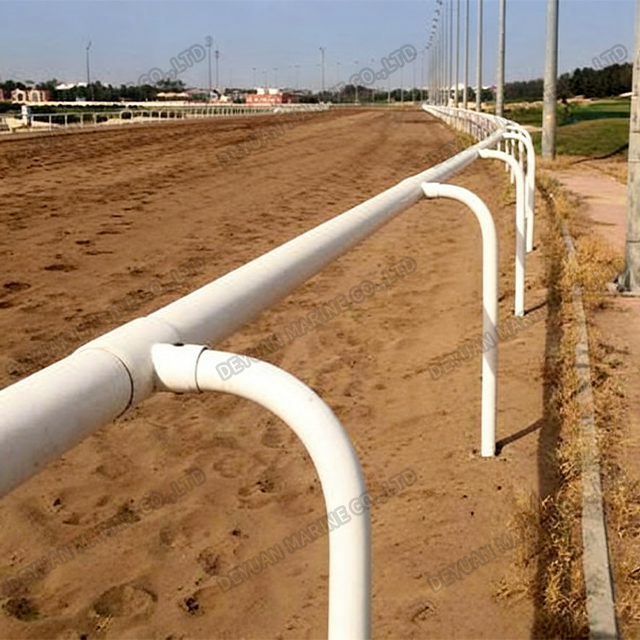

110# horse running rail, fence height: 1250 mm, spacing from post center to center: 2500 mm. The fence post is made of 63 mm heavy-duty uPVC round pipe with an integral elbow and 110 mm outer diameter uPVC round pipe. The fence is made of plastic material with high flexibility, capable of withstanding a certain strength of impact and rebound recovery. It offers extremely high safety with no blind corner protection for riders and horses. In addition, uPVC is non-rusting and free of maintenance in the long term. It is a common fence in foreign horse racing competitions (with hurdle design) and is economical, suitable for all kinds of large and medium-sized racetracks and small clubs.

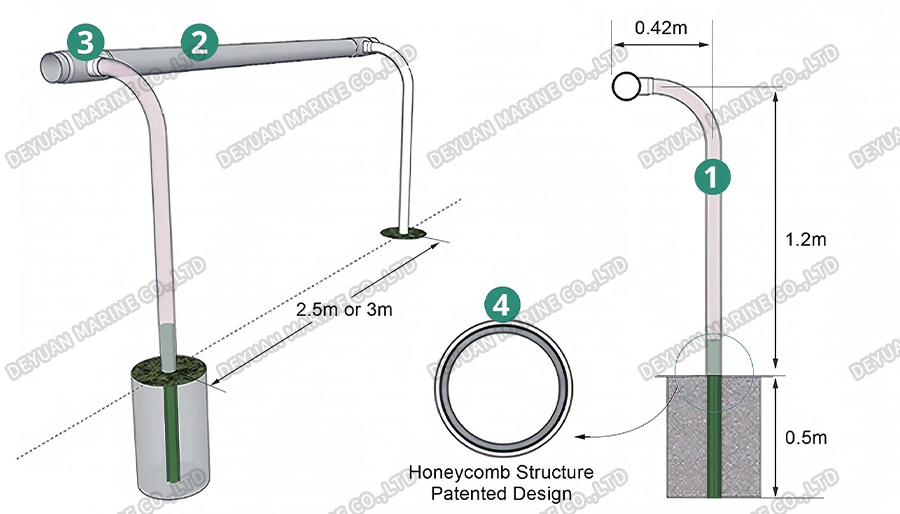

Drawing:

1. Post:

The post is a 63 mm diameter, 5.0 mm wall thickness uPVC round tube with an integrated elbow, featuring excellent elasticity and superior impact absorption performance.

2. Fence Pipe:

The fence pipe is a 110 mm diameter, 4.0 mm wall thickness uPVC round tube with a solid round design. It has a robust, attractive appearance with a smooth, rounded surface that effectively minimizes impact damage.

3. Connector:

The connector is a high-strength plastic snap-on loop, enabling quick and easy installation.

4. Embedded Parts:

The embedded part features a uPVC honeycomb structure with an average wall thickness of 4 mm, ensuring a tight fit with the post and delivering exceptional strength.Additionally, the uPVC material is corrosion-resistant and has a long service life when embedded in the ground. With a rotating design, when a horse impacts the fence board, the post rotates on the embedded part to absorb impact force, effectively protecting the safety of both riders and horses.
