Product Description

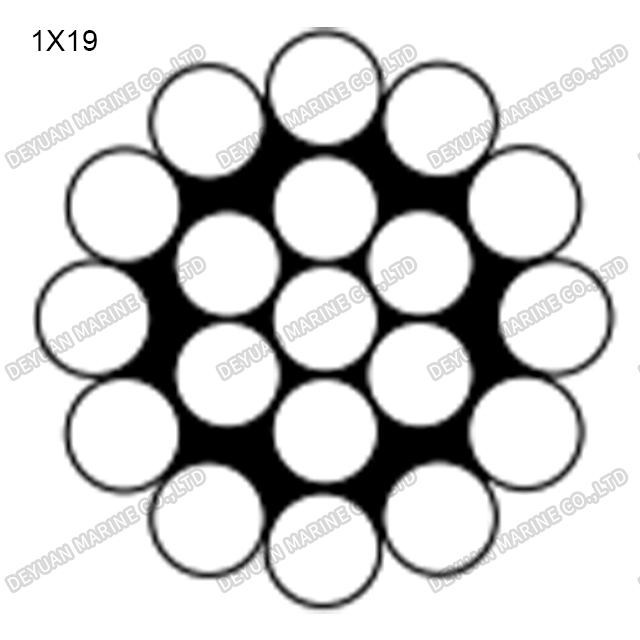

1X19 AISI316 stainless steel strand is a very popular stainless steel construction. Used heavily throughout the marine industry, 1X19’s excellent breaking load and low stretch characteristics along with its aesthetic appeal makes it a favourite for marine, structural and balustrade applications as well as many others.
Our steel wire rope is designed as per ISO/DIS2408:2002 steel wire rope, it is suitable for marine industry, fishing industry, mining industry, forestry etc.
A vairety size of wire rope diamter are in available for marine industry, Our Stainless Steel Wire Rope comes with ABS, BV, CCS, DNV, LR, KR, RINA..
Our wire rope coating/surface treatment can be galvanized or ungalvanized, if needed, two ends of wire rope will fit with socket or with rope buckle.
Wire Rope Parameter:
Nominal Diameter | Approx. Weight | Min. Breaking Load(KN) | ||||||||
mm | KG/100M | 1670MPa | 1770MPa | 1870MPa | 1960MPa | |||||
D | FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR |
5 | 8.65 | 10 | 12.3 | 13.3 | 13.1 | 14.1 | 13.8 | 14.9 | 14.5 | 15.6 |
6 | 12.5 | 14.4 | 17.7 | 19.2 | 18.8 | 20.3 | 19.9 | 21.5 | 20.8 | 22.5 |
7 | 17 | 19.6 | 24.1 | 26.1 | 25.6 | 27.7 | 27 | 29.2 | 28.3 | 30.6 |
8 | 22.1 | 25.6 | 31.5 | 34.1 | 33.4 | 36.1 | 35.3 | 38.2 | 37 | 40 |
9 | 28 | 32.4 | 39.9 | 43.2 | 42.3 | 45.7 | 44.7 | 48.3 | 46.8 | 50.6 |
10 | 34.6 | 40 | 49.3 | 53.3 | 52.2 | 56.5 | 55.2 | 49.7 | 57.8 | 62.5 |
11 | 41.9 | 48.4 | 59.6 | 64.5 | 63.2 | 68.3 | 66.7 | 72.2 | 70 | 75.7 |
12 | 49.8 | 57.6 | 70.9 | 76.7 | 75.2 | 81.3 | 79.4 | 85.9 | 83.3 | 90 |
13 | 58.5 | 67.6 | 83.3 | 90 | 88.2 | 95.4 | 93.2 | 101 | 97.7 | 106 |
14 | 67.8 | 78.4 | 96.6 | 104 | 102 | 111 | 108 | 117 | 113 | 123 |
15 | 77.9 | 90 | 111 | 120 | 118 | 127 | 124 | 134 | 130 | 141 |
16 | 88.6 | 102 | 126 | 136 | 134 | 145 | 141 | 153 | 148 | 160 |
18 | 112 | 130 | 160 | 173 | 169 | 183 | 179 | 193 | 187 | 203 |
20 | 138 | 160 | 197 | 213 | 209 | 226 | 221 | 239 | 231 | 250 |
22 | 168 | 194 | 238 | 258 | 253 | 273 | 267 | 289 | 280 | 303 |
24 | 199 | 230 | 284 | 307 | 301 | 325 | 318 | 344 | 333 | 360 |
26 | 234 | 270 | 333 | 360 | 353 | 382 | 373 | 403 | 391 | 423 |
28 | 271 | 314 | 386 | 418 | 409 | 443 | 433 | 468 | 453 | 490 |
30 | 311 | 360 | 443 | 480 | 470 | 508 | 497 | 537 | 520 | 563 |
32 | 354 | 410 | 505 | 546 | 535 | 578 | 565 | 611 | 592 | 640 |
34 | 400 | 462 | 570 | 616 | 604 | 653 | 638 | 690 | 668 | 723 |
36 | 448 | 518 | 639 | 690 | 677 | 732 | 715 | 773 | 749 | 810 |
38 | 500 | 578 | 711 | 769 | 754 | 815 | 797 | 861 | 835 | 903 |
40 | 554 | 640 | 788 | 852 | 835 | 903 | 883 | 954 | 925 | 1000 |
42 | 510 | 706 | 869 | 940 | 921 | 996 | 973 | 1052 | 1020 | 1100 |
44 | 670 | 774 | 954 | 1031 | 1011 | 1093 | 1068 | 1155 | 1120 | 1210 |
46 | 732 | 846 | 1040 | 1130 | 1100 | 1190 | 1170 | 1260 | 1220 | 1320 |
48 | 797 | 922 | 1140 | 1230 | 1200 | 1300 | 1270 | 1370 | 1330 | 1440 |
50 | 865 | 1000 | 1230 | 1330 | 1310 | 1410 | 1380 | 1490 | 1450 | 1560 |
52 | 936 | 1080 | 1330 | 1440 | 1410 | 1530 | 1490 | 1610 | 1560 | 1690 |
54 | 1010 | 1170 | 1440 | 1550 | 1520 | 1650 | 1610 | 1740 | 1690 | 1820 |
56 | 1090 | 1250 | 1550 | 1670 | 1640 | 1770 | 1730 | 1870 | 1810 | 1960 |
58 | 1160 | 1350 | 1660 | 1790 | 1760 | 1900 | 1860 | 2010 | 1950 | 2100 |
60 | 1250 | 1440 | 1770 | 1920 | 1880 | 2030 | 1990 | 2150 | 2080 | 2250 |
62 | 1330 | 1540 | 1890 | 2050 | 2010 | 2170 | 2120 | 2290 | 2220 | 2400 |
64 | 120 | 1640 | 2020 | 2180 | 2140 | 2310 | 2260 | 2440 | 2370 | 2560 |
66 | 1510 | 1740 | 2150 | 2320 | 2270 | 2460 | 2400 | 2600 | 2520 | 2720 |
68 | 1600 | 1850 | 2280 | 2460 | 2410 | 2610 | 2550 | 2760 | 2670 | 2890 |
70 | 1700 | 1960 | 2410 | 2610 | 2560 | 2770 | 2700 | 2920 | 2830 | 3060 |
72 | 1790 | 2070 | 2550 | 2760 | 2710 | 2930 | 2860 | 3090 | 3000 | 3240 |
74 | 1890 | 2190 | 2700 | 2920 | 2860 | 3090 | 3020 | 3270 | 3170 | 3420 |
76 | 2000 | 2310 | 2850 | 3080 | 3020 | 3260 | 3190 | 3450 | 3340 | 3610 |
78 | 2110 | 2430 | 3000 | 3240 | 3180 | 3440 | 3360 | 3630 | 3520 | 3800 |
80 | 2210 | 2560 | 3150 | 3410 | 3340 | 3610 | 3530 | 3820 | 3700 | 4000 |
85 | 2500 | 2890 | 3560 | 3850 | 3770 | 4080 | 3990 | 4310 | 4180 | 4520 |
90 | 2800 | 3240 | 3990 | 4320 | 4230 | 4570 | 4470 | 4830 | 4680 | 5060 |
95 | 3120 | 3610 | 4450 | 4810 | 4710 | 5100 | 4980 | 4380 | 5220 | 5640 |
100 | 3460 | 4000 | 4930 | 5330 | 5220 | 5650 | 5520 | 5970 | 5780 | 6250 |
105 | 3810 | 4410 | 5430 | 5870 | 2760 | 6230 | 6080 | 6580 | 6370 | 6890 |
110 | 4190 | 4840 | 5960 | 6450 | 6320 | 6830 | 6680 | 7220 | 7000 | 7570 |
115 | 4580 | 5290 | 6520 | 7050 | 6710 | 7470 | 7300 | 4890 | 7650 | 8270 |
120 | 4980 | 5760 | 7090 | 7670 | 7520 | 8130 | 7940 | 8590 | 8330 | 9000 |
More steel wire rope can be offered, pls contact us for more details.
