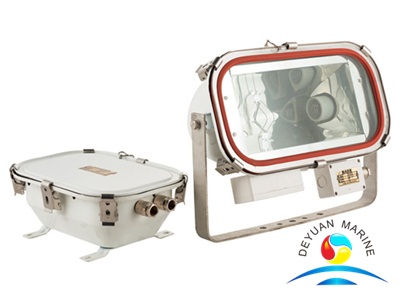

TG5 Flood Light
The scope of application:
Applied to projecting illumination in outdoor place such as ship,dock,port,store place and petroleum platform etc.
Products characteristic:
1.Made of good quality stainless steel,the lampshade is made of toughened glass,and high-purity aluminum reflector,it has good reflecting effect.
2.Compact structure and beauty appearance,good seal and anti-corrosive performance,adjust upside 90degree,down 45degree angle.
Productions authentication:
1.Conform to international IEC Norm and National standard GB7000.7-2005.
2.Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.
Specification:
| Type | Voltage | Power | Illuminant | Luminous flux | Protection class | Cable outside dia. | Weight | Lamp holder | Annex |
| TG5 | 220V/50Hz | 250W | High-pressure sodium lamp | 26000 | IP67 | Φ12-Φ14 | 8Kg | E40 | Ballast-box |
| 220V/60Hz |
| 110V/60Hz | 400W | 47000 |
