Oil Discharge Monitoring and Control System
The MARPOL 73/78 Convention specifies that oil tankers with a gross tonnage of 150 tons and above shall be equipped with an Oil Discharge Monitoring and Control System (ODMS). This system must be arranged to monitor all discharges overboard of oil contaminated water from the ballast water.

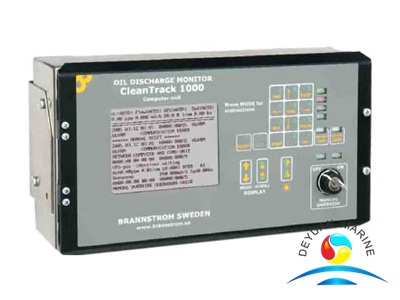

The CleanTrack 1000 Oil Discharge Monitoring and Control System is approved and certified in accordance with IMO Res. MEPC 108(49). The approval covers the ability of the system to monitor different kinds of crude oils, “black / white substances”, as well as a number of identified chemicals allowed to be carried in oil tanker under the criteria for “oil-like substances”.
The CleanTrack 1000 system is approved by the Marine Administration as specified in the IMO regulations. In addition to this, the system is ype approved by the major classicifaction societies. It ha also the “MED”-Marine Directive approval, for equipment to be installed onboard ships, in accordance with the European council Directive 96/98/EC.
Range:0 - 1000 ppm
Accuracy:According to MEPC.108(49)
Calibration:Oil Type 1-9 for Crude and Petroleum products.5 types for Bio Fuel blends
Sample Flow rate:Depending on Sample Pump.200 litres/hour to 900 litres/hour.
Clean water Flow rate:Depending on Sample Pump and Water pressure.
Intermittently 200 to 600 litres/hour.
Clean water is only used at Discharge Start and Stop.
Approximately 6-20 litres per Start/Stop
