Marine Long Circular Sunk Type Manhole Cover For Ship

Origin: Made in China
Material: Steel
Type: Long Circular Sunk Type
Clear size: 600*400mm etc
Thickness: 10-18mm
Fastener: M20
Application: Boat, ship
Certificate: CCS, BV, ABS, NK etc
Delivery time: 10-30days
Brand: Deyuan Marine
Availability:

Product Description

Marine Long Circular Sunk Type Manhole Cover For Ship


CB/T 19-2001


Model C1
Long circular Sunk type manhole cover with shield

(mm)
Model Nominal size L1 L2 L3 B1 B2 B3 S Fastener Weight(kg)
L*B mm mm Diameter Quantity
C1 450*350 450 470 650 350 470 550 10 M20 16 116.6
12 121.6
14 128.6
600*400 600 720 800 400 520 600 10 20 136.1
12 142.2
14 149.5
800*600 800 920 1000 600 720 800 12 26 171.5
14 182.6
18 206.8
C2 800*400 (Oval) 800 930 1010 400 530 610 12 24 102.8
14 118.2
18 146.2

Stub is stainlesss steel SUS304 nut material could be steel, brass, stainless steel, as user's option.

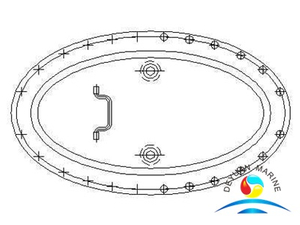

Marked sample Oval sunk manhole cover with shield which nominal size 600*400, cover plate thickness 12 .
Marked as MANHOLE COVER C1 600*400-12 CB/T 19-2001
