Product Description

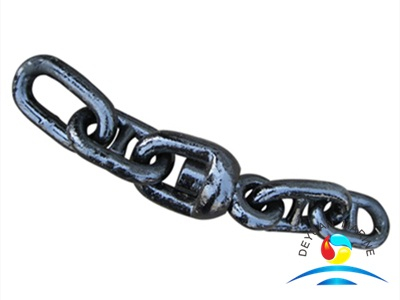

Marine Hardware Anchor Link Chain Accessories Swivel Group For Ship
We can supply Marine Hardware Swivel Group ,The size is from 11mm to 162mm , material is steel , surface treatment is blacking paint, it is application for Boat or unity heavy industry .
Besides, we also can supply you the anchor chain, mooring chain, stud link chain, open link chain, studless link chain, high tensile link chain , kinds of shackles , marine swivels group and the chain's diameter is from 16mm to 140mm with Grade1, Grade2 and Grade3 level.
Through the past years, we built up good business relationships with our customers all over the world. Our technical staff can make any products according to customer's drawing or sample. Sometimes we can give some suggestions to help our customer to improve the design and make the products work better.
We can design and produce the Accessories Swivel Group according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
Pls feel free to contact us if you want to know more information on our Anchor Link Chain Swive Group.
Marine Hardware Anchor Link Chain Swivel Group Specification :
Chain Diameter | Dimensions(mm) | Dimensions(mm) | Dimensions(mm) | weight (in kgs) |
A | B | C | ||
19 | 114 | 79.8 | 28.9 | 1.1 |
26 | 156 | 109.2 | 39.5 | 2.6 |
34 | 204 | 142.8 | 51.7 | 6 |
42 | 252 | 176.4 | 63.8 | 11 |
48 | 288 | 201.6 | 73 | 16 |
50 | 300 | 210 | 76 | 21 |
58 | 348 | 243.6 | 88.2 | 31 |
66 | 396 | 277.2 | 100.3 | 42 |
73 | 438 | 306.5 | 111 | 64 |
76 | 456 | 319 | 115.5 | 68 |
87 | 522 | 365.4 | 132.2 | 103 |
97 | 582 | 407.5 | 147.5 | 140 |
107 | 642 | 449.5 | 162.6 | 192 |
111 | 666 | 466 | 168.7 | 211 |
122 | 732 | 512.4 | 185.4 | 285 |
132 | 792 | 554.4 | 200.6 | 345 |
