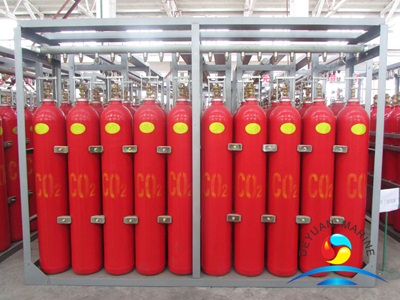

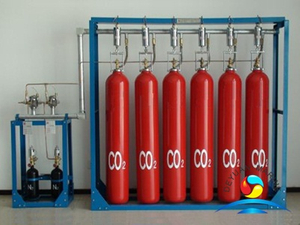

Marine CO2 Fire Extinguishing Systems :
| CO2 fire extinguishing systems | CO2 fire extinguishing systems fixed |
| Type |
| Nominal pressure | 14.7Mpa |
| Cylinder volume | CO2 cylinder | 40L,68L |
| N2 cylinder | 4L |
| CO2 filling rate | ≤0.67kg/L |
| Environment condition | Temperature | -10℃+50℃ |
| Humidity | 93±3% |
| Electricity supply | Main supply | AC220V,50HZ/440v,60HZ |
| Auxiliary supply | DC24V,3A |
| Power | Standby | ≤30w |
| Working | 200w |
| Operation method | Manual |
|
| Pneumatic | Remote control |
| Mechanically | Local operation |
| Release delay | Mechanical delay | 20-40S |
| Star up air source | Gas type | N2 |
| Filling pressure | 5.9Mpa |
More CO2 fire extinguishing systems can be offered,pls contact us for more detail
