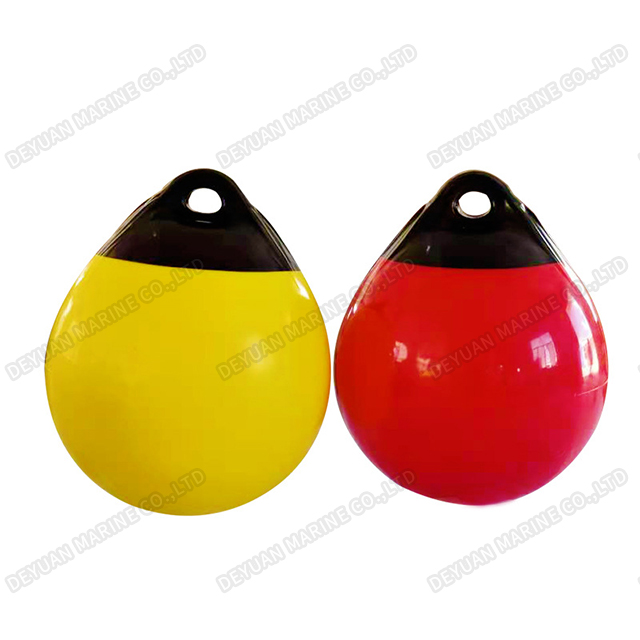

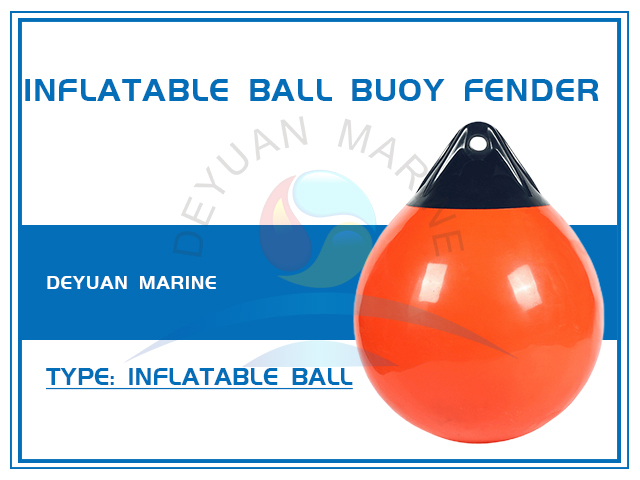

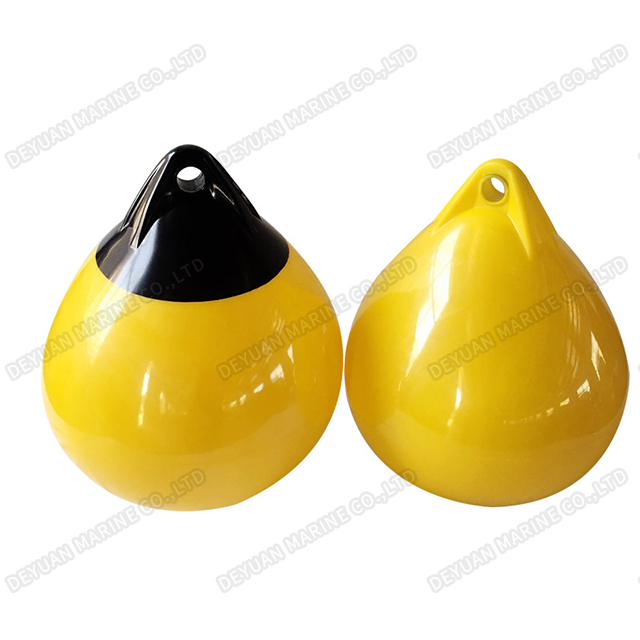

Inflatable Float Ball Buoy Fender Thickened Marine Anti-collision Ball

Brand: Deyuan Marine
Model: A25~A75/Customized
Purpose: Guard/Anti-collision
Diameter: 25~75mm
Length: 31~80cm
Thickness:4mm
Weight: 0.9~4kg

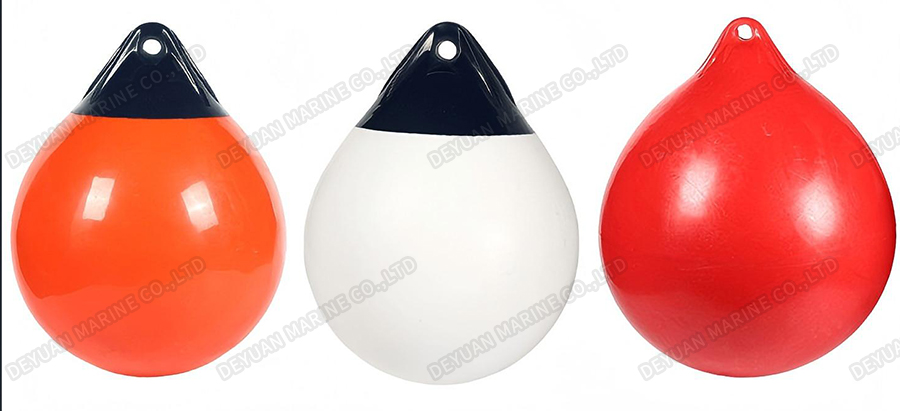

Color: Red,Yellow,Orange,White
Availability:

Product Description

Inflatable Float Ball Buoy Fender Thickened Marine Anti-collision Ball


Main purpose

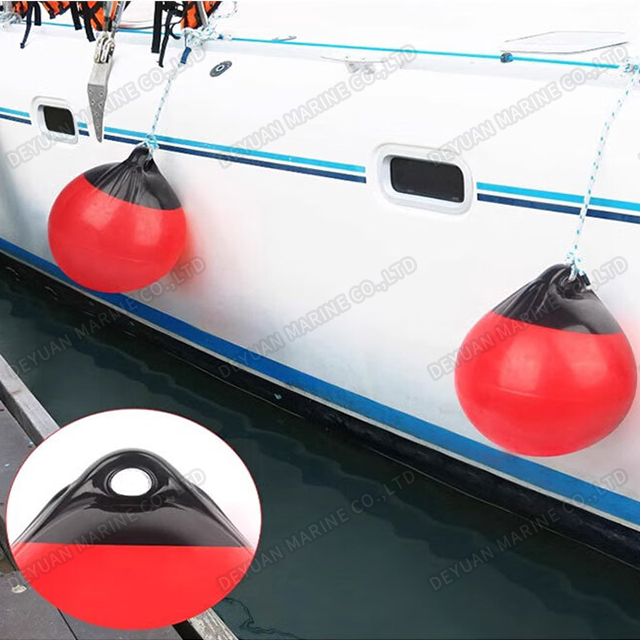

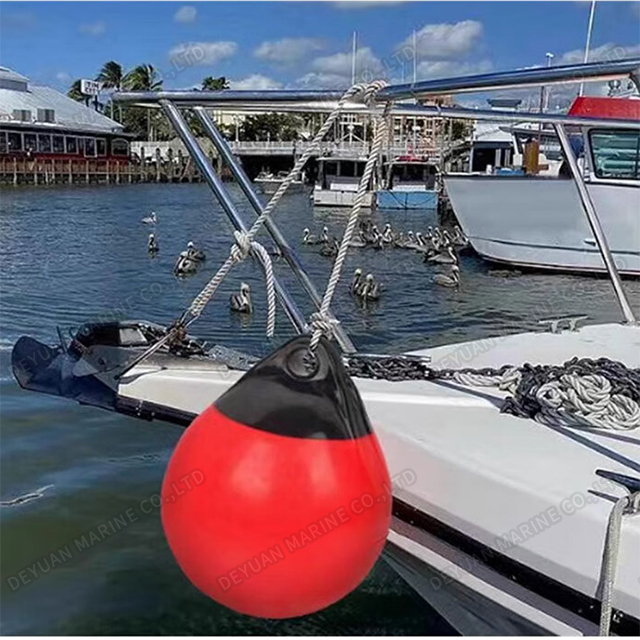

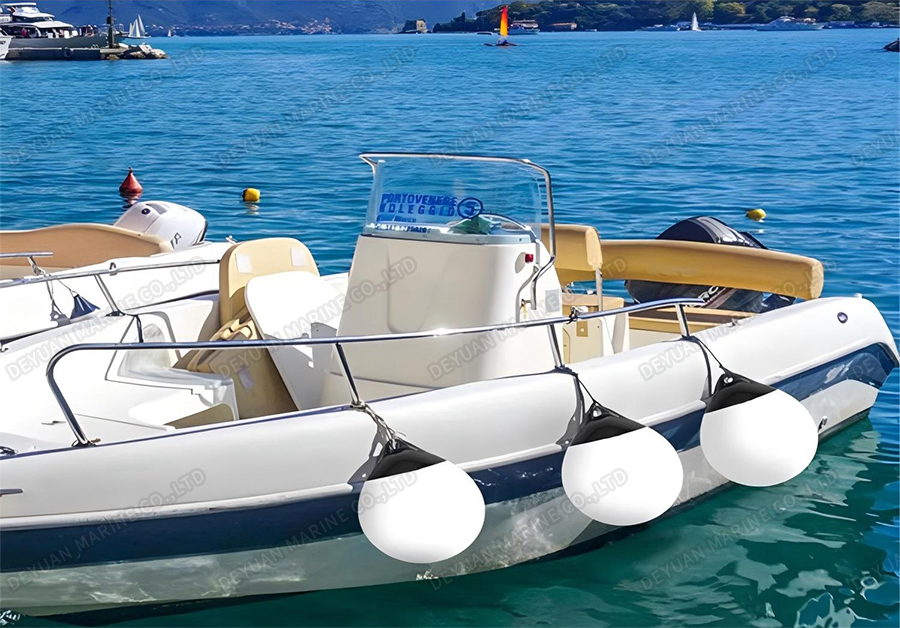

1.to reduce the impact of ships with the shore when docking.

2.warning sign for fishery,fairway traffic warning etc.


Inflatable Float Ball Buoy Fender-DEYUAN MARINE 1


Regular Size

SN

Model

Size

Thickness

Weight

1

A25

25*31cm

4mm

0.9kg

2

A29

29*35cm

4mm

1kg

3

A40

40*45cm

4mm

2.5kg

4

A45

45*50cm

4mm

3kg

5

A50

50*55cm

4mm

3.5kg

6

A55

55*60cm

4mm

4kg

7

A65

65*70cm

4mm


8

A75

75*80cm

4mm


The above weight is the net weight of the ball, excluding the traction rope, protective bag and packaging materials.


Inflatable Float Ball Buoy Fender-DEYUAN MARINE 9

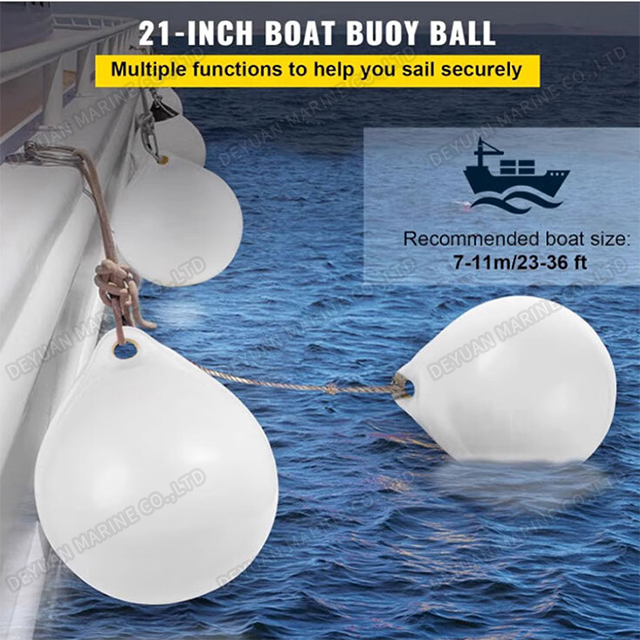

Purchase Suggestions(Fender purpose):

1. For boats with a length of less than 3 meters, the minimum use is 11*40cm cylinder or 25cm round ball

2. For boats with a length of 3~6 meters, the minimum use is 14*51cm cylinder or 29cm round ball

3. For boats with a length of 6~9 meters, the minimum use is 16*58cm cylinder or 40cm round ball

4. For boats with a length of 9~12 meters, the minimum use is 28*78cm cylinder or 40cm round ball

For boats with a length of 12~15 meters, a 45cm round ball.



Inflation Assembly and Inflation Demonstration

Inflatable Float Ball Buoy Fender-DEYUAN MARINE 8
