Product Description

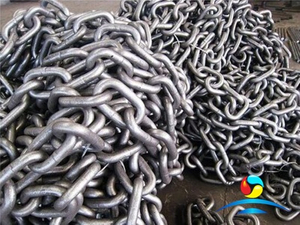

Hot Dipped Galvanizing U3 Stud Link Mooring Buoy Anchor Chain
We supply Mooring Buoy Anchor Chain , the Chain size are 8-53mm and each piece length is 27.5m, we also can produce and cut mooring anchor chain according to your special requirement , it mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration etc, the material is alloy steel, generally including CM370, CM490, CM690, or according to your requirement ,there are several types Hot Dipped Galvanizing Chain, such as studless link chains and open link chain ,normally ,the Surface treatment of Buoy Anchor Chain are self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement .
We also have a full range of chain products,such as 2.0mm-28mm common welding chains, unwelding chain,high -strength iron chains(G43,G70,G80,G100),stainless steel link chains,animal chains,compensation chain for elevator,chain accessories and so on.The products are mainly used for lifting,hoisting,pulling,mining,shipping, enlacing,fishing net falling,balance for elevator and decoration.
Product Description:
1. Grade: U2,U3,Buoy Chain
2. Size: 8mm - 53mm
3. Standard: ISO-1704-2007,IACSW18,W22,API-2F(U.S.A),Appvoved by 11 international class,such as ABS,DNV,BV,LR...
4. Certification: ISO9001,ABA,BV,CCS,CR,DNV,GL,KR,LR,NK,RINA,RMRS
5.Material:Rolled steel for marine chain cables
6.Color: Natural color , Painted , Galvanized
7.Chain Link Type: Stud Link Chain
8. Accessories: Kenter shackle, Joining shackle, Anchor shackle, Swivels, Buoy shackle and Swivel shackle...
Through the past years, we built up good business relationships with our customers all over the world. Our technical staff can make any marine products according to customer's drawing or sample. Sometimes we can give some suggestions to help our customer to improve the design and make the products work better.
We can design and produce U3 Stud Link Chain according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
If you are interested in our Stud Link Buoy Anchor Chain, welcome to send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .
Hot Dipped Galvanizing Buoy Anchor Chain Data Sheet :
Diameter (mm) | Outside length (mm) | Outside width (MM) | Proof load (KN) | Breaking load (KN) | Weight (KG/M) |
8 | 46 | 28 | 11.76 | 23.52 | 1.3 |
9 | 52 | 31 | 14.88 | 29.76 | 1.62 |
11 | 63 | 38 | 22.54 | 45.08 | 2.44 |
13 | 75 | 45 | 31.3 | 62.72 | 3.41 |
15 | 87 | 52 | 41.16 | 83.32 | 4.52 |
17 | 98 | 59 | 53.9 | 107.8 | 5.84 |
19 | 110 | 66 | 66.64 | 133.28 | 7.27 |
22 | 127 | 76 | 90.16 | 180.23 | 9.74 |
25 | 144 | 86 | 115.64 | 231.28 | 12.57 |
28 | 161 | 97 | 145.04 | 290.08 | 15.82 |
31 | 179 | 107 | 178.36 | 356.72 | 19.38 |
34 | 196 | 118 | 214.62 | 429.24 | 23.23 |
37 | 213 | 128 | 253.82 | 507.8 | 27.57 |
40 | 230 | 139 | 298.9 | 597.8 | 32.22 |
46 | 264 | 159 | 395.92 | 791.84 | 43.18 |
53 | 305 | 184 | 505.68 | 1011.36 | 56.5 |
