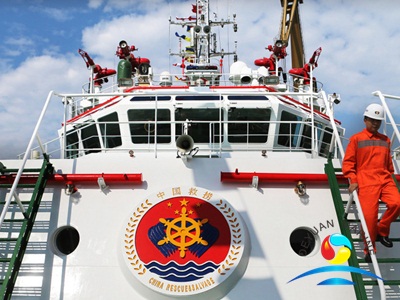

External Class FIFI System

External Class FIFI System :

Driven by:Diesel engine. The fire pump and engine will be installed on a common base.

Consisting of:

1) FiFi System  Fire Pump:2 sets

 Type: Horizontal, single stage, centrifugal pump

 Duty Specified

  Capacity: 600 m3/h

  Total Head: 130 m L.C.

  Speed: 2100 rpm

 Power absorbed : 273.6 kW (Seawater)

  Efficiency: 80%

  Discharge : Top, DN200 PN 25

  Suction: End, DN250 PN 16

  Direction of rotation: CW (viewing from driver end)

  Materials of Construction

  Casing: Nodular cast iron

  Impeller: Bronze

  Shaft : Stainless steel AISI 316

  Packing: Soft packed


2) FiFi System  Diesel Engine:2 sets

  Engine Model:TBD234V8, China

  Type:4 Cycle, 8 Cylinder, electrical start, 24VDC

  Rating Type:Heavy Duty

  Rated Engine Power:323kw @ 2100 rpm

  Direction of rotation:CCW (viewing from driver end)


3)FiFi System  High Flexible Coupling

   Mounted between PTO of diesel engine and pump

   Final model to be selected by maker.



More External Class FIFI System can be offered,pls contact us for more details
