EPR Insulated Fire Resistant Marine Power Cable
Cable Application:
The cable is used on ships,petrol platforms and offshore buildings for power,light and control systems.
Cable Standards:
IEC 60092-350 , IEC 60092-353 , IEC 60331 , IEC 60332-1-2
IEC 60332-3-22 , IEC 60754-1/2 , IEC 61034

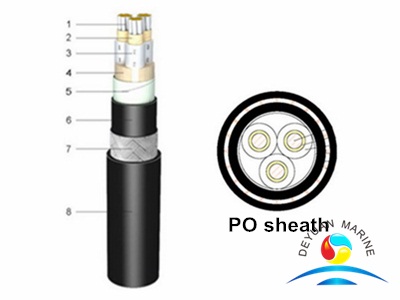

Cable Construction:
1- Conductor: Stranded circular tinned copper class2 IEC 60228
2- Fire resistant layer: Mica tape
3- Insulation: EPR
4- Filler(if necessary)
5- Tape
6- Inner sheath: PO
7- Armour: Metal wire braid
8- Outer sheath: PO
Voltage: 0.6/1(1.2)kV
Temperature: 90℃
Cable Parameter:
