Door Locking System For Dry Cargo Steel Container

  • Deyuan Marine

Product Description

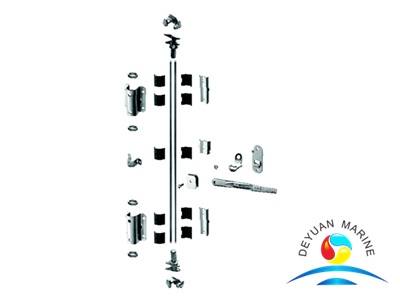

Door Locking System For Dry Cargo Steel Container
HH-A Type Dry Cargo Steel Container Door Locking System
ITEM NO. PART NO. DESCRIPTION Q’TY/SET
1 92HH-A-01 CAM  L.H 4
2 92HH-A-02 CAM  R.H 4
3 97HH-E-03 KEEPER  L.H 4
4 97HH-E-04 KEEPER  R.H 4
5 97HH-E-05-1 F-HANDLE 4
97HH-E-05-2 P-HANDLE
97HH-E-05-3 F-HANDLE NO THREE SEALING HOLES
6 92HH-A-06 BEARING BRACKET OUTER LARGE 8
7 92HH-A-07 BEARING BRACKET INNER LARGE 8
8 92HH-A-08 BEARING BRACKET OUTER SMALL GP4/HC8
9 92HH-A-09 BEARING BRACKET INNER SMALL GP4/HC8
10 97HH-E-10-1 RETAINER CATCH WITH SECURITY HOLE 4
97HH-E-10-2 RETAINER CATCH PRESS HANDLE TYPE
97HH-E-10-3 RETAINER CATCH WITHOUT SECURITY HOLE
11 97HH-E-11-1 F-RETAINER PLATE 4
97HH-E-11-2 P-RETAINER PLATE
97HH-E-11-3 F-RETAINER PLATE
12 97HH-E-12/A BUSH 4
13 92HH-A-13 HANDLE HUB 4
14 97HH-E-14/A RIVET 4
15 97HH-E-15/A ANTI-RACK RING 16
16 92HH-A-16 UPPER SHORT SPLIT BUSH GP20/HC24
17 92HH-A-17 LOWER SHORT SPLIT BUSH GP20/HC24
18
φ34×3.2    TUBE  φ34×3.2
Notes:
Handle
*Forged handle (97HH-E-05-1, 97HH-E-05-3) can be replaced by press handle (97HH-E-05-2), So retainer plate and retainer catch should be changed to press handle type (97HH-E-10-2, 97HH-E-11-2).
More door locking system for dry cargo steel container can be offered, pls contact us for more details.
