Product Description

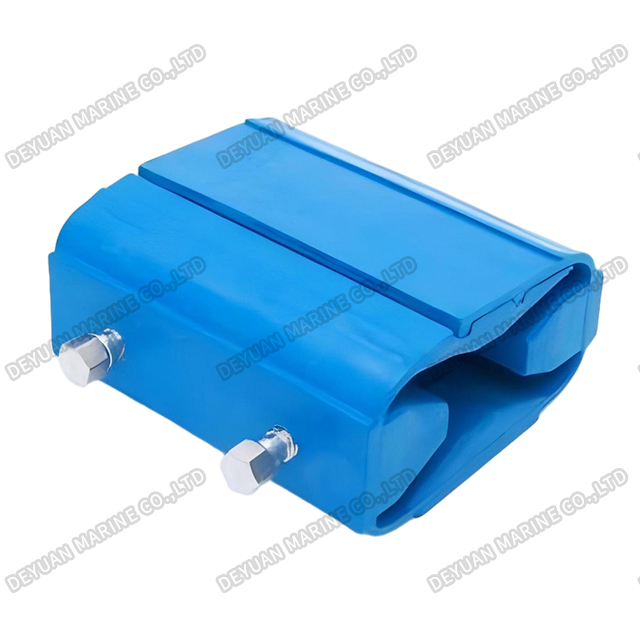

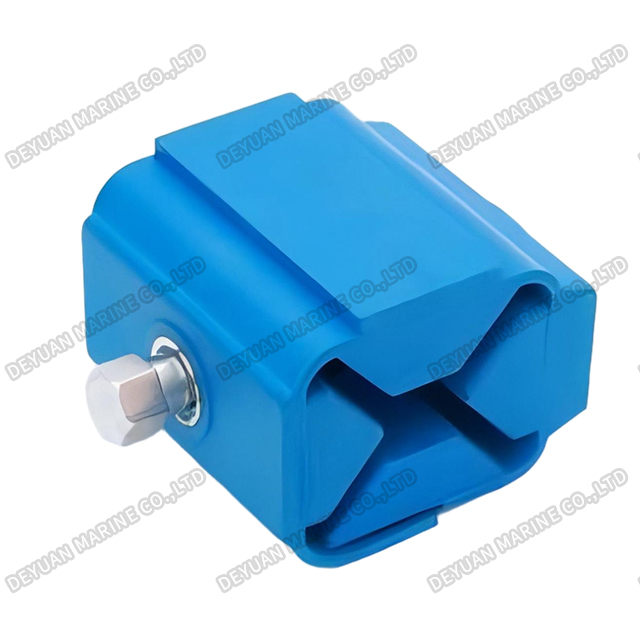

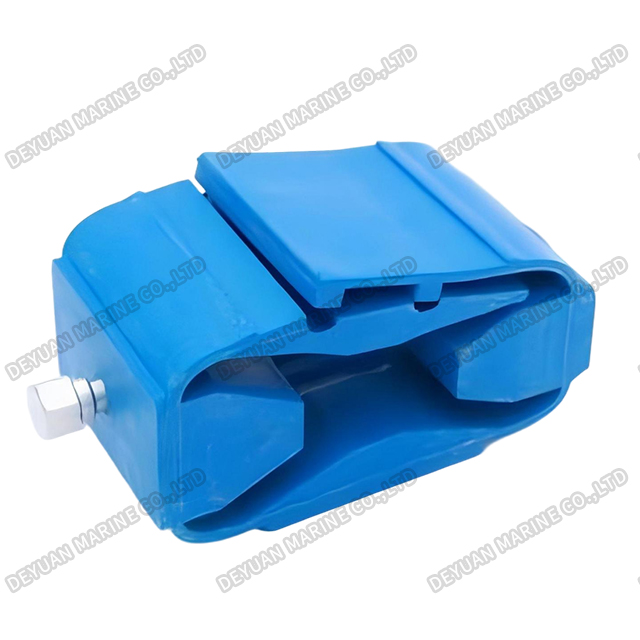

Compression Block
Product Overview:
Compression Blocks are critical components within marine cable transit frame systems, designed to apply and maintain uniform pressure on sealing modules (e.g., YRM, YCM, or elastomeric modules). These blocks ensure a tight, reliable seal around cables passing through bulkheads, decks, or walls, guaranteeing watertight, fire-resistant, and environmentally secure penetrations in marine and offshore applications.

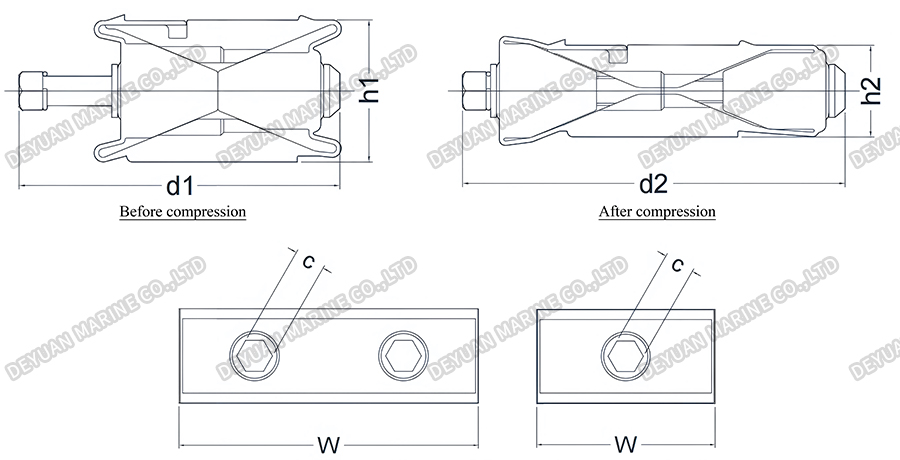

Clamping block parameters (mm):
| Clamping block model | W | d1 | d2 | h1 | h2 | c |
| 60 | 60 | 109 | 130 | 48 | 29 | 13 |
| 120 | 120 | 109 | 130 | 48 | 29 | 13 |
Note: The dimensions in the table are for reference only and non-standard dimensions can be customized.
Key Features & Benefits:
1. Uniform Pressure Distribution
2. Enhanced Sealing Integrity
3. Fire Safety Support
4. Durable & Corrosion-Resistant
5. Easy Installation & Adjustability
6. Reusability
7. Universal Compatibility
8. Certifications
Typical Applications:
1. Marine & Offshore
2. Industrial
3. Emergency Systems
