Product Description

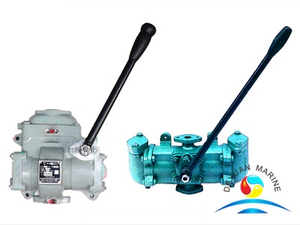

CS-40H Series Marine Reciprocating Piston Hand Pump For Water
This hand pump with reciprocating piston structure, it is light weight, easy oil absorption, installation is simple and durable, etc. CS series Hand pump suitable for pumping petrol, engine oil, kerosene, diesel oil, edible oil and other oils.
Specification:
| Type | Main technical parameter | ||||||
| Capacity | Pressure head(m) | Recipro-cation | Suction head (m) | Bore mm | Cylinder diameter | Piston stroke (mm) | |
| CS-32Y CS-32H | 48 | 25 | 50 | 6 | 32 | 88 | 90 |
| CS-40Y CS-40H | 65 | 25 | 50 | 6 | 40 | 95 | 96 |
Drawing:
