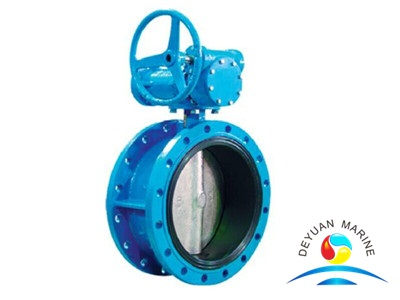

Butt-clamped Butterfly Valve

Butt-clamped Butterfly Valve:

We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc

Product standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc.

Butt-clamped Butterfly Valve  Technical Details:

Pn(Mpa)	Dn(mm)	Butt-clamped Butterfly Valve Structure dimension
		L	D	D1	Z-d	H
1 1.6	40	43	145	110	4-18	58
	50	43	165	125	4-18	63
	65	46	185	145	4-18	70
	80	46	200	160	4-18/18-18	83
	100	52	220	180	8-18	105
	125	56	250	210	8-18	115
	150	56	285	240	8-22	137
	200	60	340	295	8-22	164
	250	68	395/405	350/355	12-22	206
	300	78	445/460	400/410	12-22	230
