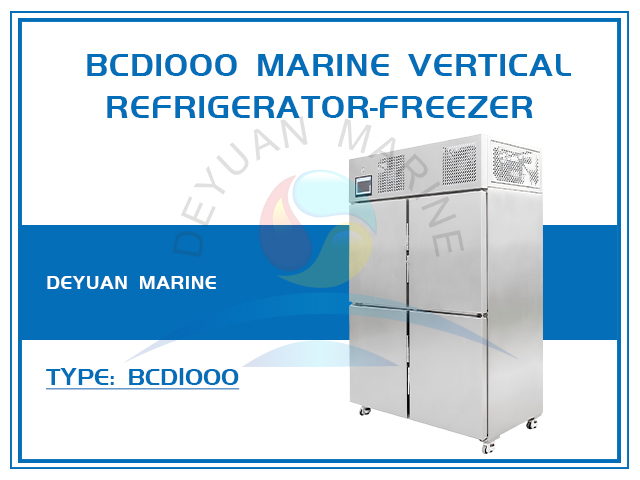

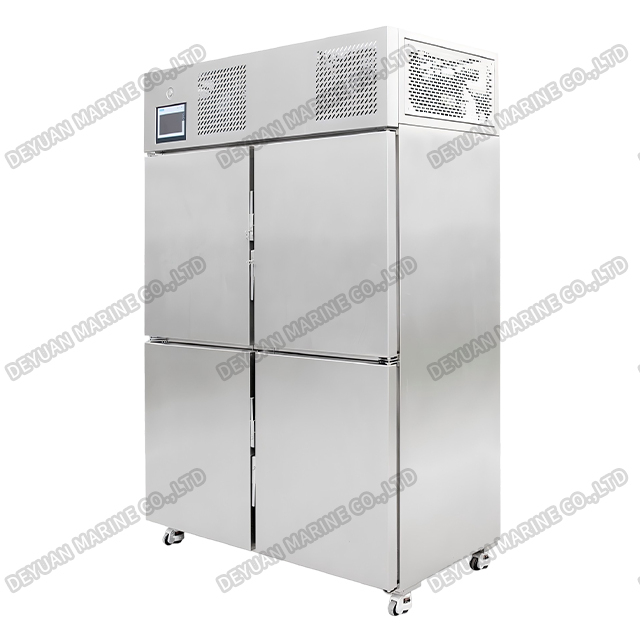

BCD1000 Marine Vertical Refrigerator-Freezer

BCD1000 Marine Vertical Refrigerator-Freezer

Product Introduction:

The BCD1000 is a high‑capacity, vertical refrigerator‑freezer engineered specifically for marine and commercial kitchens that demand reliable, hygienic, and energy‑efficient cold storage. Built with food‑grade SUS304 stainless steel and designed to withstand the corrosive salt‑spray environment, constant vessel motion, and limited galley space, this unit delivers exceptional preservation for fresh ingredients, frozen provisions, and prepared meals – ensuring food safety and quality throughout long voyages.

Marine‑Grade Stainless Steel Construction:

1.Full SUS304 stainless steel body – interior and exterior are constructed from premium 304 stainless, offering excellent resistance to rust, pitting, and staining from seawater, humidity, and acidic foods.

2.Reinforced, vibration‑resistant frame – heavy‑duty mounts, locking castors, and anti‑shift brackets keep the unit stable even in rough seas, preventing movement and door misalignment.

3.Sanitary, easy‑clean design – smooth surfaces, rounded corners, and seamless welds minimise bacterial growth and simplify wiping – critical for marine hygiene and HACCP compliance.

Technical Specifications:

Dual‑Temperature Flexibility – Refrigeration & Freezing:

1.Wide temperature range: –18 °C to +8 °C – one single unit provides both frozen storage (for meats, seafood, and ice cream) and chilled preservation (for vegetables, dairy, and beverages) simultaneously.

2.Program‑controlled refrigeration cycle – intelligent microprocessor management ensures stable temperatures, rapid pull‑down after door openings, and automatic defrost cycles to prevent ice buildup.

3.Independent temperature zones – (where applicable) allow separate settings for the freezer and refrigerator compartments, optimising storage for different food types.

Intelligent Operation & Real‑Time Monitoring:

1.Large high‑definition touchscreen display – shows real‑time operating status, including internal temperatures, defrost schedule, and system health at a glance.

2.Fault diagnosis & alarm system – audible and visual warnings alert crew to abnormal conditions (e.g., temperature deviation, door ajar, power failure, or sensor fault), enabling rapid intervention and reducing food spoilage risks.

3.Parameterised settings – operators can adjust temperature setpoints, defrost intervals, and alarm thresholds to suit specific provisioning needs.

Energy Efficiency & Environmental Adaptability:

1.Low power consumption – rated at only 2 kW, the BCD1000 delivers substantial storage capacity (700 litres) with minimal energy draw – a critical advantage on vessels with limited generator capacity.

2.Broad voltage compatibility – operates on ~220V/50-60Hz, making it suitable for vessels travelling between different power regions.

3.High‑efficiency compressor & insulation – thick, high‑density polyurethane foam insulation minimises cold loss, reducing compressor runtime and extending equipment life.

Marine‑Specific Design Features:

1.Secure door locking system – heavy‑duty latches and recessed handles prevent accidental opening during rolling seas, maintaining temperature stability and preventing spills.

2.Integrated drainage – φ16 mm drain connection simplifies defrost water removal, keeping the cabinet dry and odour‑free.

3.Space‑optimised footprint – compact dimensions (1400×700×1900 mm) fit through standard galley doors and under low overheads, while the vertical configuration maximises floor‑space efficiency.

4.Easy service access – front‑accessible compressor and control panels allow maintenance without moving the unit – essential in crowded ship galleys.

Conclusion:

The BCD1000 Marine Vertical Refrigerator-Freezer combines rugged stainless‑steel durability, intelligent temperature management, and energy‑efficient operation to deliver reliable cold storage in the most demanding marine environments. Its dual‑zone flexibility, real‑time monitoring, and marine‑specific safety features make it an indispensable asset for ship galleys, offshore platforms, and large yachts – ensuring provisions stay fresh and safe from port to port.
