Product Description

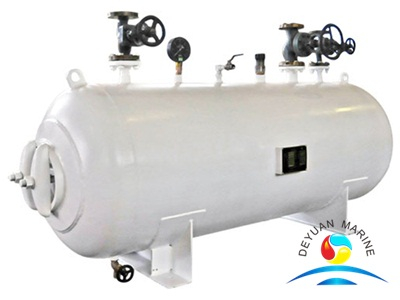

B style is made up of steel body, end, manhole for easy examination and repiar set in end,
inlet/outlet valve, safety valve,
Pressure gauge and pressure gauge valve, drain valve and installation seat etc.
Main Specification:
| Style | Type | Capacity(m3) | W.P. Mpa | Inner Dia mm | Height mm | Weight kg |
| B | B0.63-1.0 | 0.63 | 1 | 700 | 1370 | 480 |
| B0.80-1.0 | 0.8 | 700 | 1370 | 520 | ||
| B1.00-1.0 | 1 | 800 | 1490 | 685 | ||
| B0.63-3.0 | 0.63 | 3 | 700 | 1470 | 680 | |
| B0.80-3.0 | 0.8 | 700 | 1470 | 780 | ||
| B1.00-3.0 | 1 | 800 | 1580 | 950 | ||
| B1.60-3.0 | 1.6 | 900 | 1680 | 1180 | ||
| B2.50-3.0 | 2.5 | 1100 | 1940 | 1925 | ||
| B4.00-3.0 | 4 | 1200 | 2040 | 3400 | ||
| B4.50-3.0 | 4.5 | 1200 | 2040 | 3750 | ||
| B5.00-3.0 | 5 | 1200 | 2040 | 4100 | ||
| B6.30-3.0 | 6.3 | 1400 | 2265 | 4230 | ||
| B8.00-3.0 | 8 | 1500 | 2365 | 4930 | ||
| B10.00-3.0 | 10 | 1600 | 2505 | 6785 | ||
| B12.00-3.0 | 12 | 1700 | 2695 | 7500 | ||
| B14.00-3.0 | 14 | 1800 | 2750 | 8770 | ||
| B16.00-3.0 | 16 | 2000 | 3070 | 11000 |
