Anticorrosion UPVC Single Layer Roof Sheet

Brand: DEYUAN MARINE
Type: UPVC Single Layer Roof Sheet
Color: White, Green, Blue, Light Gray, Red
Width: Trapezoidal 1130mm,1360mm
Length: Customized,up to 13m
Material: UPVC
Thickness: 1/1.5/1.8/2/2.5/3mm
High Wave: 1075mm
Availability:

Product Description

Anticorrosion UPVC Single Layer Roof Sheet


Product Introduction:

This product is primarily made from polyvinyl chloride (PVC) resin, supplemented with UV-resistance additives under the support of scientific formulation and unique technology. It features excellent fire resistance, weather resistance, and electrical insulation properties, making it an outstanding anti-corrosion material. In industries with heavy pollution and areas prone to acid rain, using UPVC anti-corrosion tiles can alleviate worries about roof rust and leakage. The product is asbestos-free and environmentally friendly.


Superior Material Properties:

Manufactured from virgin UPVC material, our roof sheet is inherently corrosion-proof, rust-proof, and chemical-resistant. Unlike metal roofing, it does not corrode when exposed to moisture, coastal air, or industrial pollutants. It also resists fungal growth, termites, and decay, ensuring a long service life with minimal maintenance.


Weather Resistance & UV Protection:

The sheet is formulated with advanced UV stabilizers and weathering additives, providing excellent protection against harmful ultraviolet rays, extreme heat, heavy rainfall, and strong winds. It maintains its color stability and mechanical properties even after years of continuous outdoor exposure, preventing brittleness, fading, or surface degradation.


Thermal & Acoustic Benefits:

The single-layer design offers effective thermal insulation by reducing heat transfer, helping to keep interiors cooler in summer and warmer in winter. Additionally, the material naturally dampens noise from rain, hail, or wind, creating a quieter and more comfortable indoor environment compared to metal alternatives.

UPVC Single Layer Roof Sheet-DEYUAN MARINE4


Product Parameters:

Length Customized,up to 13m
Width Trapezoidal:1130mm,1360mm
Corrugated 1130mm
High Wave 1075mm
Little Tipova 1029mm
Thickness 1.0mm、1.5mm、1.8mm、2.0mm、2.5mm、3.0mm
Application Suitable for high-end factories,steel structure workshops,warehouses,
agricultural markets,pathways,carports,etc.


Diagram Of Ridge Tiles And Waterproof Accessories:

Diagram Of Ridge Tiles And Waterproof Accessories

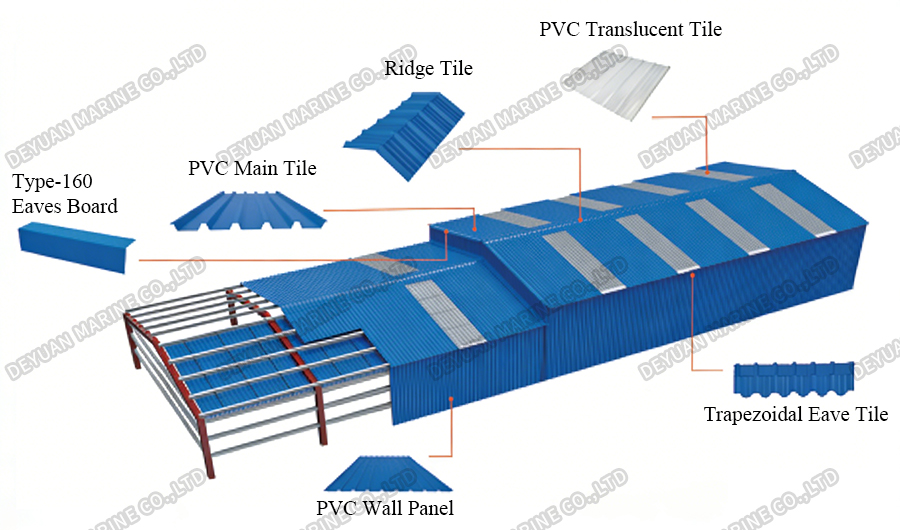

Installation Diagram:

Installation Diagram-DEYUAN MARINE
