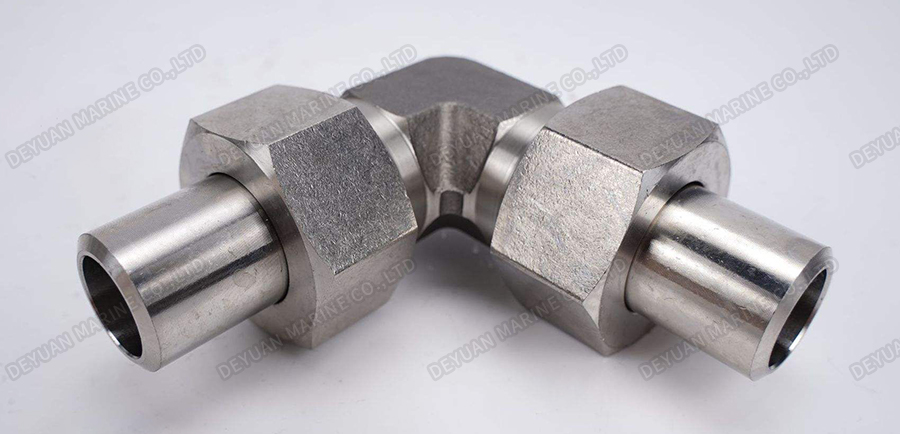

Angle Coupling Joint Bend 90° Tube Fittings

Type: Angle Bend 90°
Brand: Deyuan Marine
Assembly Std.: DIN2353(IS08434-1)
Tube O.D.: 06~50mm
Pressure: 160~630Mpa
Divide: Light/Heavy duty
Material: Carbon steel/Stainless steel/Brass
Availability:

Product Description

Angle Coupling Joint Bend 90° Tube Fittings


Extrusion type pipe joint

Extrusion type pipe joint is a positive tube fitting system that consists of just three components . The mechanically reshaped tube end is positively. connected by a conventional DIN fit ting body and a DIN nut, the only possible leakage path being sealed off by an elastomer ring. One characteristic feature of the reshaped tube, which is insert ed into the 24° cone of the body.This results in a marked improvement in assembly behaviour and good protection against excessive tightening


Electronically control led machines-both stationary and mobile-guarantee efficient production with consistently high quality.


For reshaping steel tubes with outside diameters from 6 to 42mm

and stainless steel tubes with outside diameters from 6 to 42mm (without 38X 6mm).


By changing tools,the M-WF385X/B0 machine can also be used as a flaring machine for Eaton’s Walterscheid -37° SAE flared flanges up to 60.3 mm.

Angle Coupling Joint Bend 90 Tube Fittings-DEYUAN MARINE 1


We guarantee nominal pressure classes up to 800 bar for WALFORM plus tube fitting components a safety factor of 4 and l 00% stripping resistance as a result of the unique shape.



The individual components of the WALFORM tube fitting comply with DIN EN ISO 8434-1.However,the fitting system can not be viewed in isolation. Consequently, the pressure loading Capacity is always governed by the tube sizes used and their wall thicknesses


Extrusion type pipe joint nominal pressure levels

Straight Coupling Tube Fittings-Deyuan Marine 2


Angle Coupling Joint Bend 90 Tube Fittings-DEYUAN MARINE 2

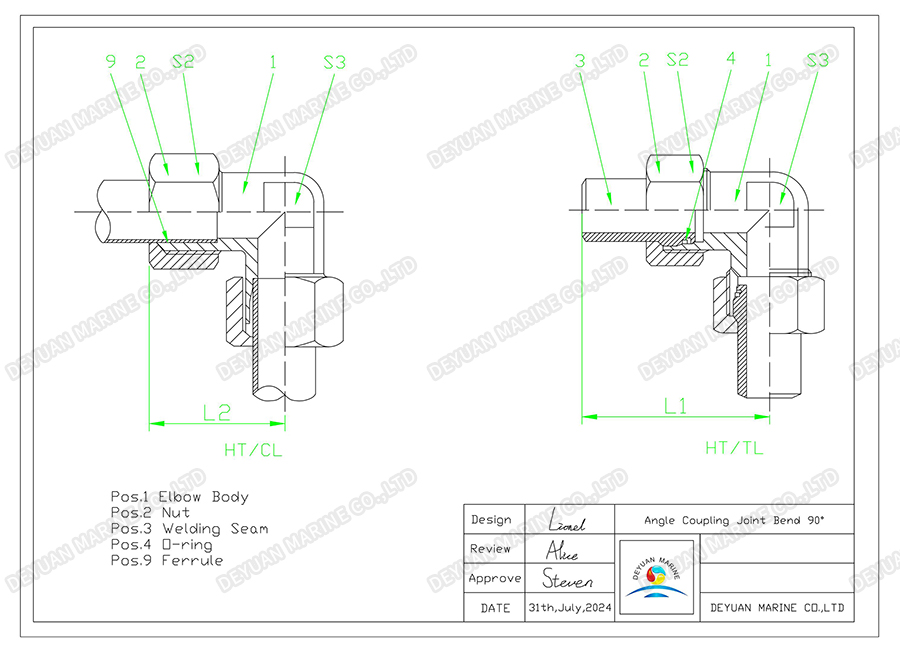

Angle Coupling Joint Bend 90° Tube Fittings

Series Tube OD Ordering Code L1 L2 S2 S3 Pressure
(PN)
HT/CL daxt HT/TL
L 06
08
HT/CL06×tL*
HT/CL08×tL*
HT/TL06L*
HT/TL08L*
41.0
43.5
27
29
14
17
12
14
315
315
10
12
HT/CL10×tL*
HT/CL12×tL*
HT/TL10L*
HT/TL12L*
48.0
50.0
30
32
19
22
17
19
315
315
15
18
HT/CL15×tL*
HT/CL18×tL*
HT/TL15L*
HT/TL18L*
56.0
62.5
34
40
27
32
19
24
315
315
22
28
HT/CL22×tL*
HT/CL28×tL*
HT/TL22L*
HT/TL28L*
66.0
70.5
44
47
36
41
27
36
160
160
35
42
HT/CL35×tL*
HT/CL42×tL*
HT/TL35L*
HT/TL42L*
83.0
91.0
56
63
50
60
41
50
160
160
S 06
08
HT/CL06×tS*
HT/CL08×tS*
HT/TL06S*
HT/TL08S*
43.0
45.5
31
32
17
19
14
17
630
630
10
12
HT/CL10×tS*
HT/CL12×tS*
HT/TL10S*
HT/TL12S*
51.5
55.0
34
38
22
24
19
19
630
630
14
16
HT/CL14×tS*
HT/CL16×tS*
HT/TL14S*
HT/TL16S*
58.5
65.0
40
43
27
30
19
24
630
400
20
25
HT/CL20×tS*
HT/CL25×tS*
HT/TL20S*
HT/TL25S*
72.0
85.0
48
54
36
46
27
36
400
400
30
38
HT/CL30×tS*
HT/CL38×tS*
HT/TL30S*
HT/TL38S*
92.0
106.0
62
72
50
60
41
50
400
315
50
HT/TL50S* 138.0
80 70 250

*Material:C-Carbon      steel;P-Stainless      steel;T-Brass.

L-Light duty

S-Heavy duty
