Product Description

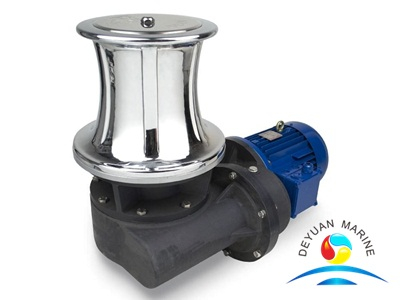

Yacht Small Size Electric Stainless Steel Marine Capstan
When we select a capstan for a yacht or small boat for mooring， usually we do not only cosider about the basic functions but also require dimensions and even appearance. So normally a compact and stainless steel made mode is the most popular pattern for such vessels.
Besides the capstan, we also design and produce small size and stainless windlass and winch for yacht.
For more mode or further information, pls do not hesitate to contact us.
| Electric Capstan for Yacht | ||||||||
| Model | Warping Load | Warping Speed | Wire Dia. | Motor Power | Dimensions (mm) | Weight | ||
| (KN) | (m/min) | (mm) | (KW) | A | B | C | (ton) | |
| ECY-10 | 10 | 18 | 11 | 4.3/1.7 | 260 | 450 | 1325 | 0.68 |
| ECY-15 | 15 | 18 | 13 | 8.5/3.5 | 320 | 550 | 1450 | 0.85 |
| ECY-20 | 20 | 18 | 15 | 11/11/7.5 | 320 | 550 | 1495 | 0.92 |
| ECY-30 | 30 | 18 | 17.5 | 16/16/11 | 400 | 750 | 1850 | 1.75 |
| ECY-50 | 50 | 18 | 20.5 | 22/22/16 | 450 | 850 | 2000 | 2.15 |
More yacht electric capstan can be offered,pls contact us for more details.
