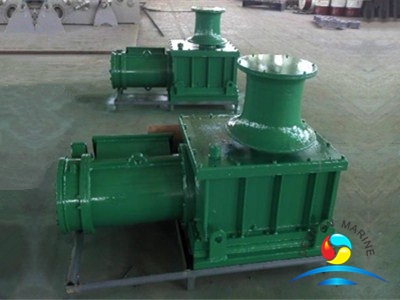

Deck Mounted Marine Vertical Electric Mooring Rope Capstan Winch For Engineering
Marine Electric or hydraulic anchor and mooring rope capstan widely used in ocean engineering, construction, mining, port and other material lift or drag. Normally, electric mooring rope winch is mainly used for ship and offshore platform mooring, positioning. Ship throwing anchor, anchoring and so on.
Marine mooring rope capstan with features compact structure and precision design, small volume, light weight, good looking appearance, and simple and reliable operation also good safety performace.
We supply engineering mooring rope capstans capacity in a range from 5KN to 300KN, can be design to be double speed and triple speed which will required corresponding double and triple speed motor to drive.. hydraulic driven mooring rope capstans are also available from our fatcory.
Engineering electric vertical mooring rope capstans mainly supply with certificate such as CCS, ABS, DNV, BV, RINA, BKI etc. Welcome contact with me if you want any this marine engineering capstans!
| Model | Working Load | Mooring Speed | Motor Power |
| (kN) | (m/min) | (kW) | |
| 5kN | 5 | 15 | 2.2/0.75 |
| 10kN | 10 | 15 | 4.3/1.7 |
| 15kN | 15 | 15 | 6/2.5 |
| 20kN | 20 | 12 | 11/11/.75 |
| 30kN | 30 | 12 | 16/16/11 |
| 50kN | 50 | 12 | 22/22/16 |
| 70kN | 70 | 12 | 30/30/22 |
| 100kN | 100 | 12 | 45/45/30 |
| 125kN | 125 | 12 | 45/45/30 |
| 150kN | 150 | 9 | 45/45/30 |
| 180kN | 180 | 9 | 45/45/30 |
| 200kN | 200 | 9 | 45/45/30 |
| 250kN | 250 | 9 | 60/60/45 |
| 280kN | 280 | 9 | 75/75/36 |
| 300kN | 300 | 9 | 75/75/36 |
