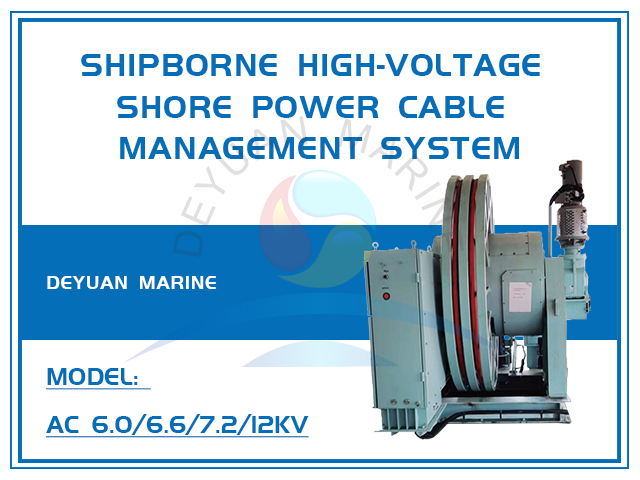

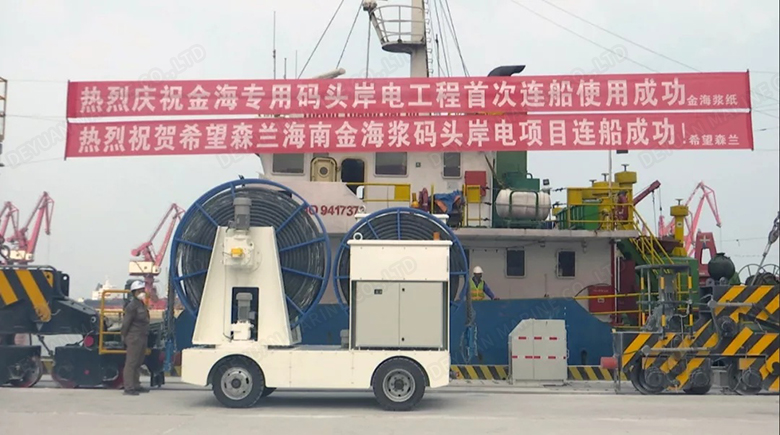

Shipborne High-voltage Shore Power Cable Management System
Product Features
Constant tension cable management system, automatic retraction according to tension, cable tension value can be configured.
Intelligent fault alarm and monitoring system (slip ring temperature rise monitoring, motor overload, roll fault, torque normality,inverter failure, cable tension abnormality, etc.
The main components provide classcification society certificate, and the slip ring system has passed the authoritative CNAS third-inspection report.
We can provide product certifcates for each classification society.
Product Parameters
| Electrical Parameter | 6.6kV 60Hz, 11 kV 50Hz |
| Maximun Cable | 3*185+ 1*95+4*2.5+6*62.5/125μm high-voltage flexible cable (with optical fiber), conventional cable 50~ 185 square meters(on demand) |
| Cable Length | 55m + 2 empty turns (cable length can be customized according to customer requirements) |
| Drive Mode | Frequency conversion motor + hysteresis + reducer; With constant tension control function. Such as cha,n d 「iven , equipped with automatic braking system |
| Motor | 4-7.5KW, 960-1440r/min, With brake. Working voltage: AC400V 50Hz, AC450V 60Hz |
| Reel Type | |
| Winch Structure | Reel type |
| Winding Form | Multi-layer winding |
| Winding Speed | 0-15 m/min. Exterior treatment: the surface is sprayed with marine anticorrosive paint |
| Slip Rings | Built-in high-quality slip ring box assembly, capacity 700A, 3 power rings+ 1 grourding ring+4 control rings |
| Cable Rack | Material: low carbon steel, surface sprayed with marine anti-corrosion paint, Form: independent hydraulic drive unit, telescopic down mode st 「ucture. Cable guides with multiple rollers to meet the bend radius requirements of the cable |
Consisting of shipborne cable management system
Main components

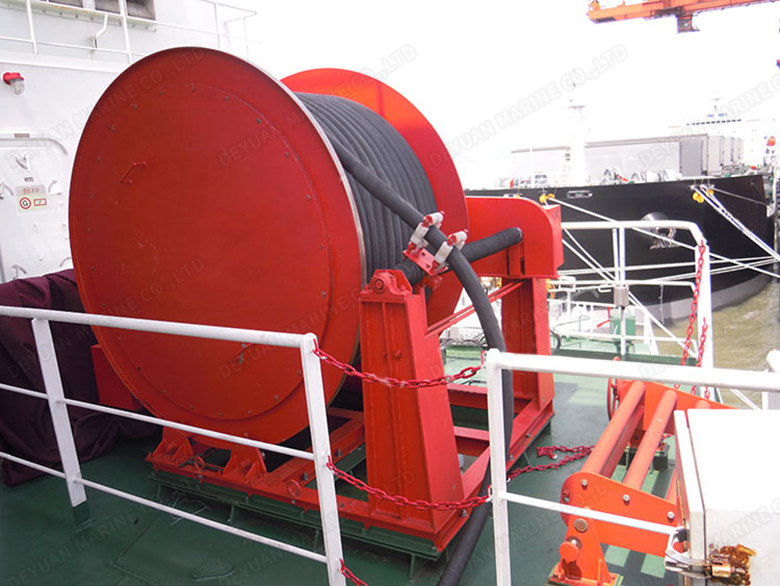

Cable Reel
Reel size and type basis cable length and customer needs design, the type can be made into rolls disc or roll, surface spray marine anticorrosive paint.
High-voltage slip ring (maximum capacity)
JL-HVSR- 650A 10kV
Rated voltage: 6.0kV,6.6kV, 10kV,
Rated frequency: 50/60Hz
Rated current: 650A
Rated capacity: 7.2MVA
Frequency converters
Control the forward rotation of the motor by means of a frequency converter, Reversal and rotational speed. Implement the cable's Control of retracting, releasing and speed
Motor+hysteresis coupling
Motor: Used to control the forward and reverse rotation of the reel.
Hysteresis coupling:Under normal circumstances,the speed of the motor is transmitted to the reducer.
When the rear end is stalled, it slips to prevent overloading the motor. When the motor does not work properly or the cable receives a pull force greater than the set value, the reel cable can be released to prevent the cable from being damaged by excessive force pulling off.
Reducer
Reduce the output speed and increase the output torque to meet the rear end equipment there is enough torque to turn.
Remote Control
Wired remote control; Wireless remote control. The ope rator can remotely operate the cable frame, from the side of the boat and cable retraction/discharge. It also has an emergency stop button.
Cable rack
It is divided into hydraulic type and hand-cranked type.
Function: Cable transfer to the outboard of the ship, with multi-roller, to prevent friction damage between
the cable and the broadside, the structural design meets the requirements the bend radius of the cable is req uired. When mooring, it is low ered to the side of the ship outside, not in use or retracted when sailing.
Depending on the design requirements, a set of tension transmitters can be installed on the front end sensor,monitors the tension received by the cable and is analog is transmitted to the PLC, and the tersion value has been displayed.
Pulse counter
Through a certain transformation ratio, the rotation of the reel is monitored in real time number, sent to the PLC in analog form to convert to cable receipt the length value returned or streamed.
At the same time, 3 levels can be set Bits: full, last 2 laps, last lap, and open off output.
Control box
The control box is floor-mounted. Made of 316L stainless steel plate made, thickness 3mm. For the front door panel, left and right large sides the sealing plate and other parts of the shell that are welded are used in the table surface electrostatic spraying process to ensure its corrosion resistance and shape beautiful, the hole of the incoming and outgoing cable should be installed with a waterproof connector.
1) Electricity : AC400V/450V, 50/60Hz
2) Rated power: 4-7.5KW.
Control box internal equipment
Inside, touch screen all-in-one, button, indicator light, frequency converter, control transformer, micro-fault, control transformer, select devices such as switches. The main components are all XimenSub, Schneider and other w ell-known brands
High/low-voltage AMP flexible cables
| SN | ||
| 1 | Conductor | Copper of class 5 IEC 60228,flxible stranded |
| 2 | Insulation | High-quality Ethyene Propylene Rubber(EPR) with improved mechanical and electrical characteristics |
| 3 | Inner semiconductor | Ethylen Propylene Rubber(EPR)same as insulation blace color |
| 4 | Outer semiconductor | Extruded NBR of easy strip plan |
| 5 | Ground conductor | Copper of class 5 IEC 60288,flxible stranded |
| 6 | Sheath system | Chloroprene rubber(CR)with excellent oil-resistant,UV-proof and non-hygroscopic characteristics and resistant to sea air and seawater. |
| 7 | Pilots cores | Flexible stranced 4x2.5 sqmm pilots with 4 filler element.Specially for those phase core cross-section is 50 or 70 sqmm,stranding is over optical fiber unit to achieve reduced cable outer diameters. |
| 8 | Optical fiber unit | Optical fiber unit with ETFE sheathed and Kevlar threads reinforced acc. to IEC 60793-2-10 spec. A1b. Filler with Kevlar polyester rope embeded |
| 9 | Central support | Optical fiber unit with ETFE sheathed and Kevlar threads reinforced acc. to IEC 60793-2-10 spec.A1b. Filler with Kevlar polyester rope embedded. |
