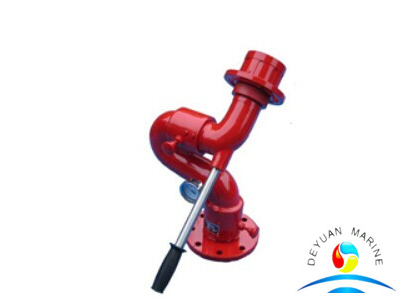

SS80 Manual Type Fire Monitor
Descriptions: Produced on requirement
The max capacity: 4000L/MIN
The max pressure: 16bar
Inlet: Flange DN80 PN16
Outlet: Screw thread
Optional inlet Flange: DN80 PN16/ANSI2''/ANSI 3''
Rotation range:
Horizontal: 360°
Vertical: +85°~ －75°
Weight: ~25Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
