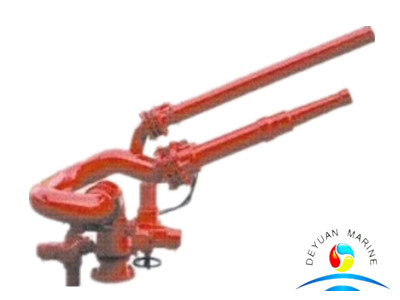

SS150EL Eletric Operation Fire Monitor
Effective capacity: 18000L/min(around 300L/s,1080M3/H)
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet : DN200 / ANSI6''
Rotation range:
Horizontal: 340°
Vertical: +75°~ －45°
Weight: ~225Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
