Product Description

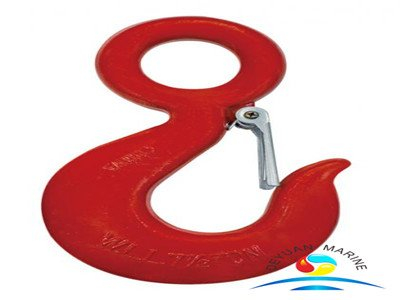

S320 US Type Alloy Steel Eye Hook with Safety Latch
Our S320 eye hook is with proper design,carefulforging and precision controlled quenched and tempering and suitable for most slinging applications.
This US type lifting eye hook can be with or without a safety latch.A latch is designed to prevent the load from slipping off the hook and eye allows easy connection to coup links and can be attached to lifting apparatus.
Available material for the eye hook with safety latch is alloy steel and carbon steel,working load limit permanently shown on the body of the lifting hoist eye hook.Different color for the eye hooks are for option.
If are in need of any hoist hook,lifting hook,rigging hooks,pls donot hesitate to contact us for more details.
| WLL(t) | Dimensions(in) | Weight (lbs) | ||||
| 320C | 320A | B | R | O | T | |
| 1/2 | 3/4 | 0.63. | 2.8 | 0.81 | 0.65 | 0.37 |
| 3/4 | 1 | 0.75 | 3..22 | 0.88 | 0.81 | 0.57 |
| 1 | 1 1/2 | 0.91 | 3.66 | 0.97 | 0.81 | 0.77 |
| 1 1/2 | 2 | 1.12 | 4.09 | 1 | 0.84 | 1.28 |
| 2 | 3 | 1.25 | 4.69 | 1.12 | 1.19 | 1.73 |
| 3 | 4 1/2 | 1.56 | 5.78 | 1.34 | 1.38 | 3.66 |
| 5 | 7 | 2 | 7.38 | 1.69 | 1.78 | 7.19 |
| 7 1/2 | 11 | 2.44 | 9.06 | 2.06 | 2.12 | 13.17 |
| 10 | 15 | 2.83 | 10.09 | 2.22 | 2.72 | 22.15 |
Specifications and prices may change from time to time so please confirm before placing your order.
