Product Description

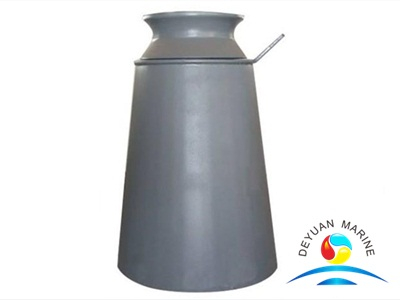

Marine Mooring Warping Roller With Cylindrical Pedestal Type A DIN 81907
Our Warping Roller with pedestal produce according DIN 81906 standard, they can be supplied with cast iron or cast steel as customer requirement , these Marine Mooring Warping Roller are suitable for wire rope or all types of standard marine rope.
All our Warping Roller With Cylindrical Pedestal are fabricated from high quality cast steel for extra durability , the Cylindrical Pedestal roller are supplied with certification and can be to your particular requirement (ABS, BV, DNLV, LR, NK, CCS etc) ,no matter what types of marine Warping Roller you are looking for, kindly contact Deyuan marine sales team,you will find the right person and the right Mooring Warping Roller ,besides ,Only certain sizes of these high quality type A DIN81907 Pedestal rollers are held in stock so please contact asap to verify stock levels and/or place a warping Pedestal roller order in advance if required.
Cast from the finest quality steel for added durability, our DIN81907 Warping Roller range utilises a combination of horizontal and vertical rollers to give you a comprehensive solution for your needs ,Designed for a breaking strength of wire 180 wrap on the roller, these marine Pedestal rollers come with lubricated bronze bearings and the roller is heat treated for a longer working life , besides , Our units are also supplied with a weld down base (a circular base can be supplied as an optional extra).
Deyuan can offer warping roller with Cylindrical pedestal, also have other non standard roller , such as GB-T10105-88 Marine fairlead roller,JISF 2014-1987 marine guide roller ,double rollers with plate,three rollers with plate,cleat fairlead with single roller CB436-2000 TYPE A , cleat fairlead with single roller CB436-2000 TYPE B, NS2585 marine mooring roller,Korean roller,type A universal mooring fairlead roller,DIN81906-1999 rollers,marine roller for fairlead,steel roller,steel plate roller, guide roller with stand,open type two roller fairlead,open type three roller fairlead, etc.
If you are interested in our warping roller fairlead , kindly call us or send the inquiry to us ,we are always waiting for you in here .
Single Fairlead With Pedestal Type A DIN81907 Data Sheet:
| Model | d1× S1(mm) | d2(mm) | b(mm) | d4(mm) |
| 1 | 219×12.5 | 255 | 60 | - |
| 2 | 273×12.5 | 310 | 60 | - |
| 3 | 355×12.5 | 395 | 60 | - |
| 5 | 457×12.5 | 495 | 60 | - |
| 8 | 559×12.5 | 595 | 80 | 560 |
| 12 | 660×14.2 | 705 | 80 | 660 |
| 20 | 660×17.5 | 705 | 100 | 660 |
| 32 | 813×16 | 965 | 100 | 810 |
