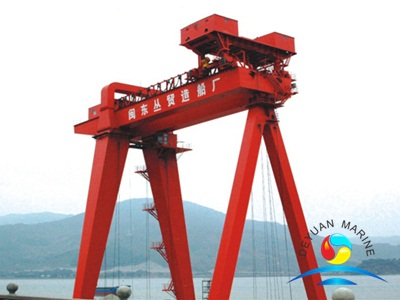

Double Girder Gantry Crane Frame Crane For Shipbuilding
We Deyuan Marine Manufacturer can design and supply all kinds of gantry crane for shipbuilding, wharf, boat laying-up and ports, most of our cranes can class certified by all leading classification societies. Other special gantry cranes can be made to measure according the specific requirements of the Customer. We can also provides skillful technician service for maintenance, training, testing, assembling and operating the products at customer’s working site.
Gantry crane mainly consist of cylindrical wheels, the buffer, block brakes, wire rope, lifting hook, the driver room, reducer, casting pulley, casting reel, motor, electronic control equipment etc. Gantry crane have two different type, that is single girder gantry crane and double girder gantry crane, Single girder gantry crane is with simple structure, easy to manufacture and install, and light weight. compared with double girder gantry crane, the overall stiffness is weaker. Double girder gantry crane with big lifting capacity, large span, the overall stability is good, it is variety,high lifting altitude, multi function and high efficiency, and its own quality is better than same weight single girder gantry crane, compared to the single dirder gantry crane the cost is higher.
| Capacity(T) | Up Trolley | 75×2 |
| Down Trolley | 100 | |
| Servicing Crane | 5 | |
| Two Trolley Lifting | 200 | |
| Section Reverse Pointing | 150 | |
| Span(MM) | 70000 | |
| Lifting Height(MM) | Trolley | 50000 |
| Servicing Crane | 65000 | |
| Working Duty | A5 | |
| Speed | Hoisting Speed | 0.5~5~10 |
| 0.5~5~10 | ||
| 10 | ||
| Trolley Speed | 2.5~20~40 | |
| 2.5~20~40 | ||
| 10 | ||
| Crane Speed | 2.5~25 | |
| Total Power(kw) | 519 | |
| Recommend Rail | QU80 | |
| Power Supply | 3-phase A.c.50Hz 10KV | |
More double girder gantry crane for shipbuilding can be offered,pls contact us for more details.
