CGF-180 Reflector Magnetic Compass

  • Deyuan Marine

Product Description

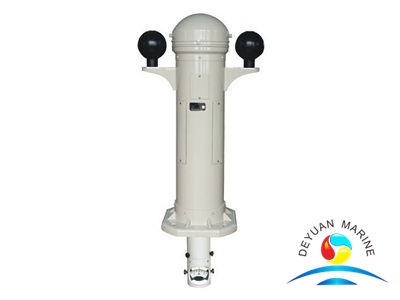

CGF-180 Reflector Magnetic Compass
Our company has developed entirely reflector magnetic compass. The product has the advantages of beautiful outline, clear and bright reflector dial, its performance are completely in accordance with the ISO 449 and IMO standard and requirement related to navigation equipment. The magnetic compass adopts new generational directional alnico and correctional alnico, it can raise the precision of magnetic compass and transducer by a large margin .

Main technical parameters:
Project Data
Dial Diameter Φ180mm
Dial graduation 360° 1°for each grid
Using temperature -25~+60
Indicating deviation     H=35μTT=20±3℃) ≤0.5°
Half periodH=35μTT=20±3℃) ≥8.62 S
Friction deviationH=35μTT=20±3℃) ≤0.09°
Main semicircle self heterodyne correcting energy 45°
Secondary semicircle self heterodyne correcting energy 6°(magnetic inclination Q=45°)
Quadrant self heterodyne correcting energy 0.5°10°
Inclining self heterodyne correcting energy 75~+75μT
Lens barrel flexing range ±100mm
Dial image expanding rate ≈2times original dial graduation
Lighting power supply AC 220VDC 24V
Outline Dimension 750×500×1380mmExcluding the length of lens barrel
Diameter of mounting holes Pitchrow 442 ApertureΦ24
Weight 82kg
