Product Description
A Series Commercial Grade LED Solar Powered Street Lighting
Deyuan Marine solar street lighting system consists of solar panel, led lights fixture and mast. Power ranges from 30~600W, solar panel power ranges from 6W to 50W. Continuous working time upto 12~15hours after 4~6 hours charged.
Specical Functions: light control + timing + remote control + radar sensor

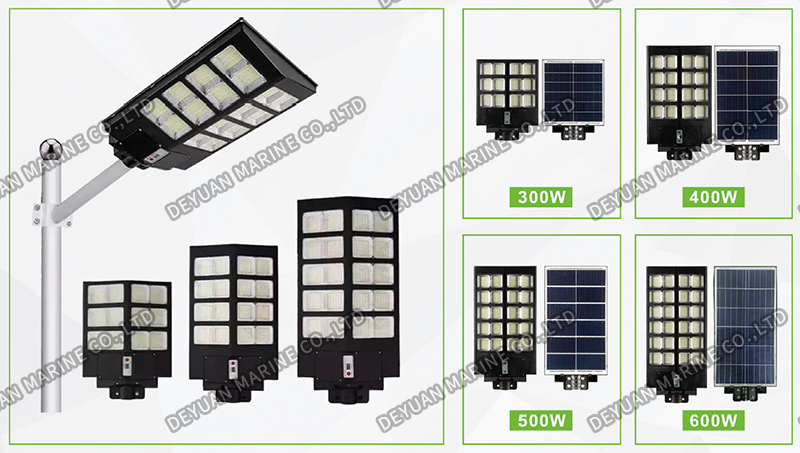

DY-A1 Solar Street Lighting
Parameters
| Power | 300W | 400W | 500W | 600W |
| Lamp Size | 450*350*80mm | 600*350*80mm | 680*350*80mm | 760*350*80mm |
| Solar Panel | 6V/18W | 6V/25W | 6V/30W | 6V/35W |
| Battery | 3.2V/15000mA | 3.2V/20000mA | 3.2V/25000mA | 3.2V/25000mA |
| LED Chip QTY | 480PCS/5730 | 640PCS/5730 | 800PCS/5730 | 960PCS/5730 |
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 12-15Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | light control + timing + remote control + radar sensor | |||

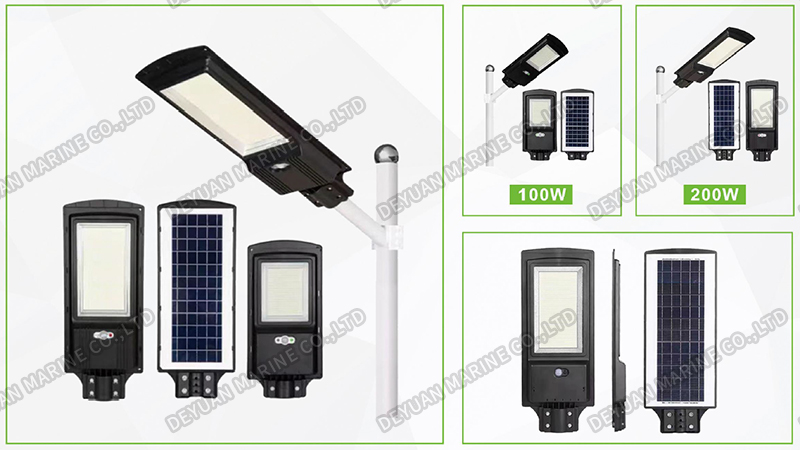

DY-A2 Solar Street Lighting
Parameters
| Power | 100W | 200W | ||
| Lamp Size | 500*230*52mm | 625*250*52mm | ||
| Solar Panel | 6V/8W | 6V/12W | ||
| Battery | 3.2V/5000mA | 3.2V/10000mA | 3.2V/10000mA | 3.2V/15000mA |
| LED Chip QTY | 462PCS/2835 | 936PCS/2835 | ||
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 12-15Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | light control + timing + remote control + motion sensor | |||

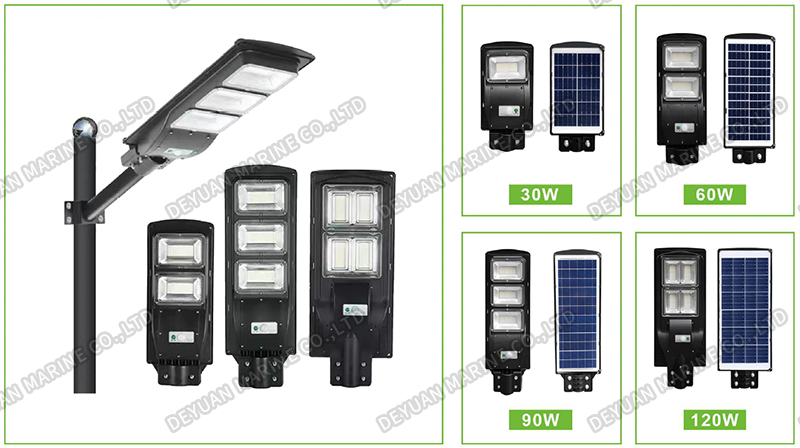

DY-A3 Solar Street Lighting
Parameters
| Power | 30W | 60W | 90W | 120W |
| Lamp Size | 187*55*360mm | 190*55*478mm | 197*55*600mm | 250*70*630mm |
| Solar Panel | 6V/6W | 6V/8W | 6V/12W | 6V/16W |
| Battery | 3.2V/5000mA | 3.2V/5000mA | 3.2V/10000mA | 3.2V/15000mA |
| LED Chip QTY | 60PCS/2835 | 120PCS/2835 | 180PCS/2835 | 240PCS/2835 |
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 12-15Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | light control + timing + remote control + motion sensor | |||
DY-A4 Solar Street Lighting
Parameters
| Power | 300W | 400W | 500W |
| Lamp Size | 467*362*79.5mm | 617*362*79.5mm | 697*362*79.5mm |
| Solar Panel | 6V/18W | 6V/25W | 6V/30W |
| Battery | 3.2V /15000mA | 3.2V/15000mA | 3.2V/20000mA |
| LED Chip QTY | 344PCS/2835 | 578PCS/2835 | 812PCS/2835 |
| Material | ABS | ||
| IP Grade | IP65 | ||
| CCT | 6500K | ||
| Charging time | 4-6Hours | ||
| Working time | 12-15Hours | ||
| Working Temperature | -20~50 | ||
| Working Pattern | light control + timing + remote control + mot ion sensor | ||

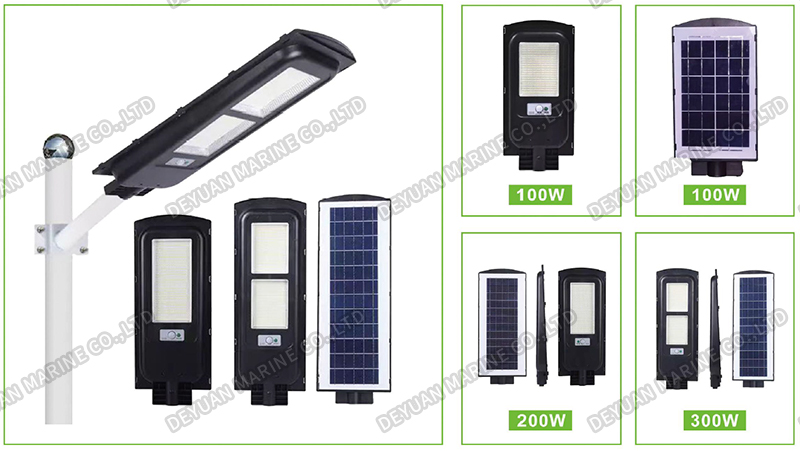

DY-A5 Solar Street Lighting
Parameters
| Power | 50W | 100W | 200W | 300W |
| Lamp Size | 370*196*60mm | 466*222*60mm | 581*241*60mm | 680*241*60mm |
| Solar Panel | 6V/6W | 6V/8W | 6V/12W | 6V/15W |
| Battery | 3.2V/5000mA | 3.2V/5000mA | 3.2V/10000mA | 3.2V/15000mA |
| LED Chip QTY | 150PCS/2835 | 462PCS/2835 | 748PCS/2835 | 932PCS/2835 |
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 12-15Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | control + timing + remote control + motion sensor | |||

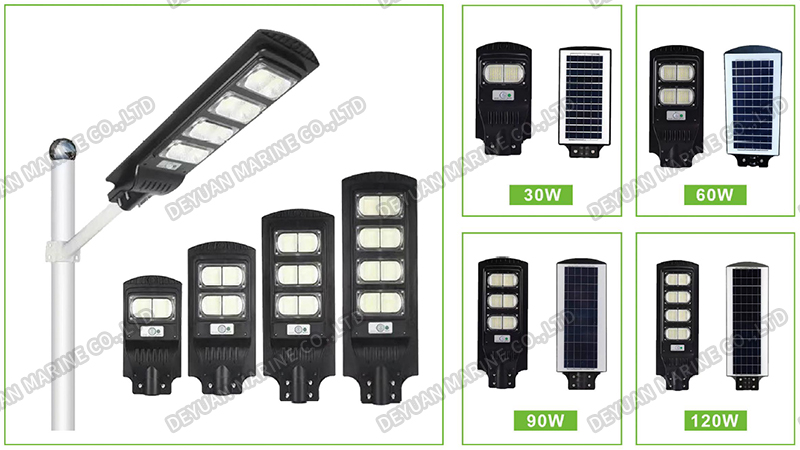

DY-A6 Solar Street Lighting
Parameters
| Power | 30W | 60W | 90W | 120W | 150W |
| Lamp Size | 388*193*60mm | 484*218*60mm | 620*238*60mm | 720*240*60mm | 820*240*60mm |
| Solar Panel | 6V/6W | 6V/8W | 6V/12W | 6V/15W | 6V/18W |
| Battery | 3.2V/5000mA | 3.2V/5000mA | 3.2V/10000mA | 3.2V/15000mA | 3.2V/15000mA |
| LED Chip QTY | 80PCS,573 | 160PCS,5730 | 240PCS,5730 | 320PCS,5730 | 400PCS.5730 |
| Material | ABS | ||||
| IP Grade | IP65 | ||||
| CCT | 6500K | ||||
| Charging time | 4-6Hours | ||||
| Working time | 12-15Hours | ||||
| Working Temperature | -20~50 | ||||
| Working Pattern | control + timing + remote control + motion sensor | ||||
DY-A7 Solar Street Lighting
Parameters
| Power | 30W | 60W | 90W | 120W | 150W |
| Lamp Size | 388*193*60mm | 484*218*60mm | 620*238*60mm | 720*240*60mm | 820*240*60mm |
| Solar Panel | 6V/6W | 6V/8W | 6V/12W | 6V/15W | 6V/18W |
| Battery | 3.2V/5000mA | 3.2V/5000mA | 3.2V/10000mA | 3.2V/15000mA | 3.2V/15000mA |
| LED Chip QTY | 48PCS/5730 | 96PCS/5730 | 144PCS/5730 | 192PCS/5730 | 240PCS/5730 |
| Material | ABS | ||||
| IP Grade | IP65 | ||||
| CCT | 6500K | ||||
| Charging time | 4-6Hours | ||||
| Working time | 12-15Hours | ||||
| Working Temperature | -20~50 | ||||
| Working Pattern | light control+ timing + remote control + motion sensor | ||||

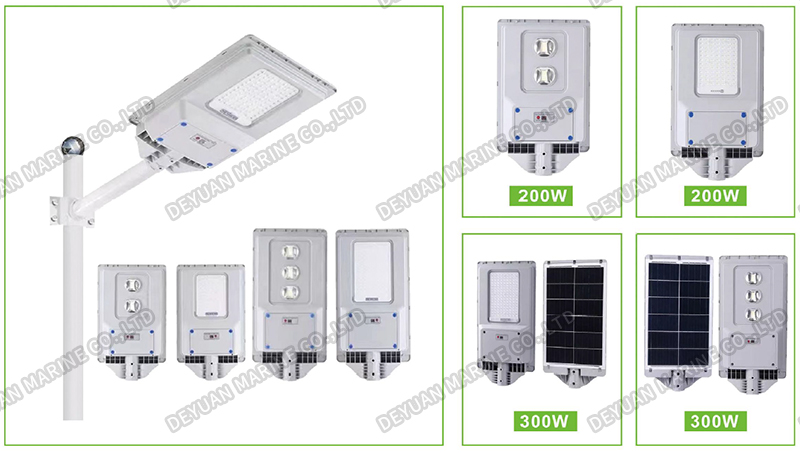

DY-A8 Solar Street Lighting
Parameters
| Power | 200W | 300W |
| Lamp Size | 560*340*60mm | 710*355*70mm |
| Solar Panel | 6V/20W | 6V/30W |
| Battery | 3.2V/15000mA | 3.2V/25000mA |
| LED Chip QTY | 84PCS/3030 | 144PCS/3030 |
| Material | ABS | |
| IP Grade | IP65 | |
| CCT | 6500K | |
| Charging time | 4-6Hours | |
| Working time | 12-15Hours | |
| Working Temperature | -20~50 | |
| Working Pattern | light control + timing + remote control + radar sensor | |
DY-A9 Solar Street Lighting
Parameters
| Power | 300W | 400W | 500W |
| Lamp Size | 703*365*87mm | 810*365*87mm | 916*365*87mm |
| Solar Panel | 6V/40W | 6V/45W | 6V/50W |
| Battery | 3.2V/35000mA | 3.2V/40000mA | 3.2V/45000mA |
| LED Chip QTY | (102*3) 3030 | (102*4) 3030 | (102*5) 3030 |
| Material | Aluminum | ||
| IP Grade | IP65 | ||
| CCT | 6500K | ||
| Charging time | 4-6Hours | ||
| Working time | 15-18Hours | ||
| Working Temperature | -20~50 | ||
| Working Pattern | light control + timing + remote control+ always mode | ||
DY-A10 Solar Street Lighting
Parameters
| Power | 100W | 200W | 300W | 400W | 500W |
| Lamp Size | 500*210*70mm | 500*210*70mm | 500*210*70mm | 500*210*70mm | |
| 500*210*70mm | |||||
| Solar Panel | 6V/15W | 6V/20W | 6V/20W | 6V/25W | 6V/25W |
| Battery | 3.2V/15000mA | 3.2V/15000mA | 3.2V/15000mA | 3.2V/20000mA | 3.2V/20000mA |
| LED Chip QTY | 572PCS/2835 | 695PCS/2835 | 901PCS/2835 | 1216PCS/2835 | 1824PCS/2835 |
| Material | Aluminum | ||||
| IP Grade | IP65 | ||||
| CCT | 6500K | ||||
| Charging time | 4-6Hours | ||||
| Working time | 10-12Hours | ||||
| Working Temperature | -20~50 | ||||
| Working Pattern | light control + timing + remote control + always mode | ||||

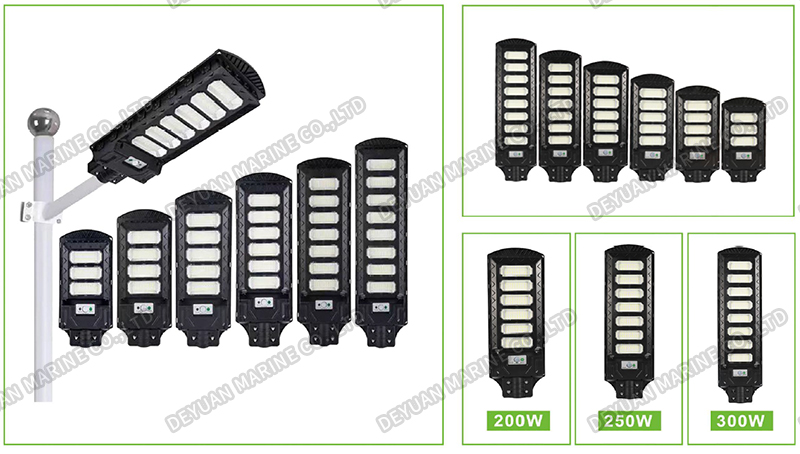

DY-A11 Solar Street Lighting
Parameters
| Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Lamp Size | ||||||
| 413*219*70 | 469*219*70 | 526*219*70 | 628*238*70 | 728*238*70 | 827*238*70 | |
| Solar Panel | 6V/6W | 6V/8W | 6V/10W | 6V/12W | 6V/15W | 6V/18W |
| Battery(mA) | 3.2V/5000 | 3.2V/5000 | 3.2V/5000 | 3.2V/10000 | 3.2V/10000 | 3.2V/15000 |
| LED Chip QTY | 150PCS/5730 | 200PCS/5730 | 250PCS/5730 | 300PCS/5730 | 350PCS/5730 | 400PCS/5730 |
| Material | ABS | |||||
| IP Grade | IP65 | |||||
| CCT | 6500K | |||||
| Charging time | 4-6Hours | |||||
| Working time | 10-12Hours | |||||
| Working Temperature | -20~50 | |||||
| Working Pattern | light control + timing + remote control + motion sensor | |||||

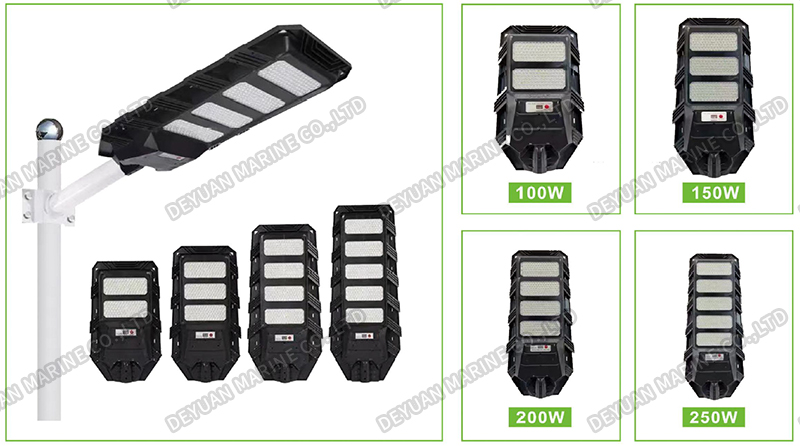

DY-A12 Solar Street Lighting
Parameters
| Power | 100w | 150w | 200W | 250w |
| Lamp Size | 433*265*65mm | 512*275*65mm | 620*305*65mm | 730*310*65mm |
| Solar Panel | 4.5V/6W | 6V/8W | 6V/12W | 6V/15W |
| Battery | 3.2V/5000mA | 3.2V/5000mA | 3.2V/10000mA | 3.2V/15000mA |
| LED Chip QTY | 180PCS/2835 | 270PCS/2835 | 360PCS/2835 | 450PCS/2835 |
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 10-12Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | light control + timing + remote control + radar sensor | |||

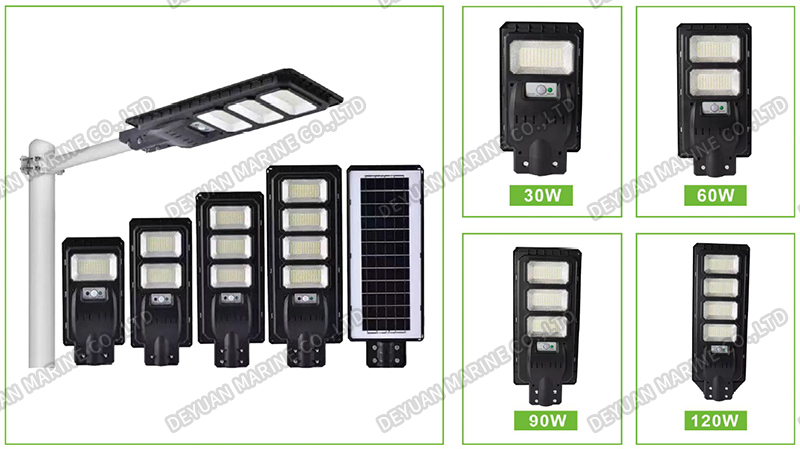

DY-A13 Solar Street Lighting
Parameters
| Power | 30W | 60W | 90W | 120W |
| Lamp Size | 384*207*57mm | 479*235*57mm | 618*256*57mm | 720*256*57mm |
| Solar Panel | 6V/6W | 6V/9W | 6V/12W | 6V/15W |
| Battery | 3.2V /5000mA | 3.2V /5000mA | 3.2V/10000mA | 3.2V/15000mA |
| LED Chip QTY | 96PCS/5730 | 192PCS/5730 | 288PCS/5730 | 384PCS/5730 |
| Material | ABS | |||
| IP Grade | IP65 | |||
| CCT | 6500K | |||
| Charging time | 4-6Hours | |||
| Working time | 10-12Hours | |||
| Working Temperature | -20~50 | |||
| Working Pattern | light control + timing + remote control + motion sensor | |||

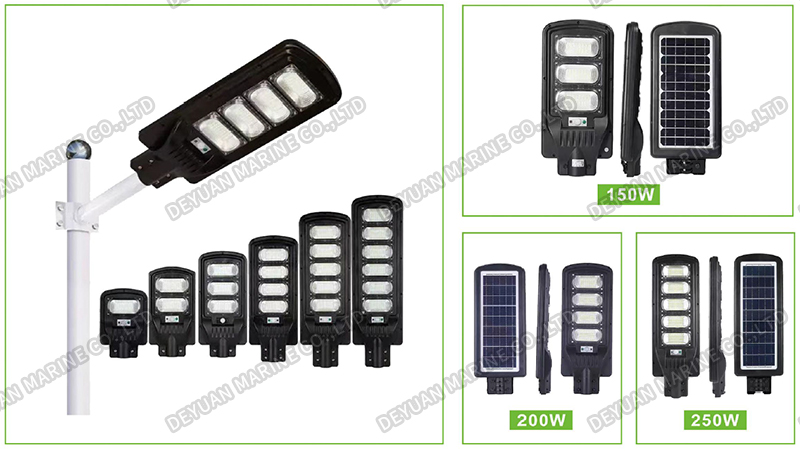

DY-A14 Solar Street Lighting
Parameters
| Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Lamp Size | ||||||
| 213*312*63 | 207*405*65 | 233*505*75 | 252*640*80 | 252*743*80 | 252*835*80 | |
| Solar Panel | 6V/6W | 6V/7W | 6V/9W | 6V/15W | 6V/16W | 6V/18W |
| Battery(mA) | 3.2V/5000 | 3.2V /5000 | 3.2V/10000 | 3.2V/10000 | 3.2V/15000 | 3.2V/15000 |
| LED Chip QTY | 40PCS/5730 | 80PCS/5730 | 120PCS/5730 | 16PCS/5730 | 200PCS/5730 | 240PCS/5730 |
| Material | ABS | |||||
| IP Grade | IP65 | |||||
| CCT | 6500K | |||||
| Charging time | 4-6Hours | |||||
| Working time | 10-12Hours | |||||
| Working Temperature | -20~50 | |||||
| Working Pattern | light control + timing + remote control + motion sensor | |||||

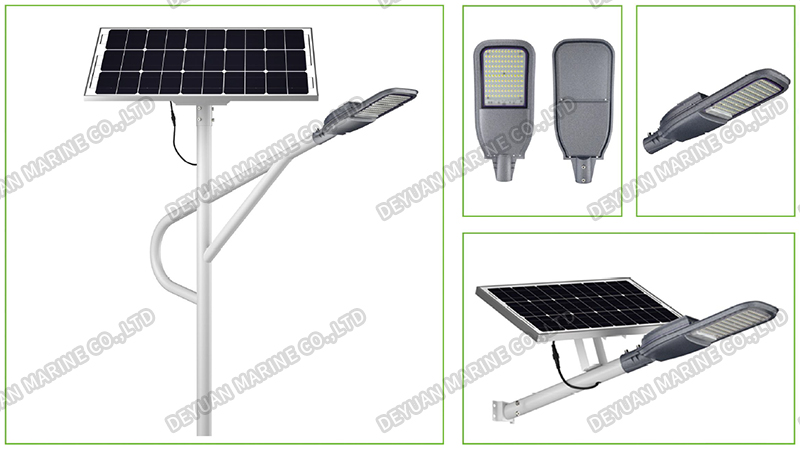

DY-A15 Solar Street Lighting
Parameters
| Power | 200W | 300W | 500W |
| Lamp Size | 600*260*90mm | 600*260*90mm | 600*260*90mm |
| Solar Panel | 6V/25W | 6V/30W | 6V/35W |
| Battery | 3.2V /20000mA | 3.2V /25000mA | 3.2V/30000mA |
| LED Chip QTY | 120PCS/5050 | 120PCS/5050 | 120PCS/5050 |
| Material | Aluminum | ||
| IP Grade | IP65 | ||
| CCT | 6500K | ||
| Charging time | 4-6Hours | ||
| Working time | 10-12Hours | ||
| Working Temperature | -20~50 | ||
| Working Pattern | ight control + timing + remote control + always mode | ||
