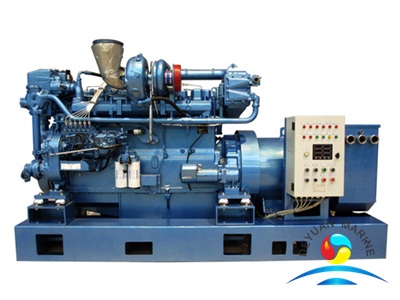

6M26 Series Marine Diesel Generator Sets

6M26 Series Marine Diesel Generator Sets:

1, Rated power: 400kW;

2, rated voltage: 400V;

3, the rated speed / rated frequency: 1500rpm/50Hz;

4, Rated power factor: 0.8 (lagging);

5, rated current: 721.7A

6, number of cylinders / Bore / Stroke: 6/150mm/150mm;

7 Displacement: 15.9L;

8 Cooling: Dual circulation water cooling;

9, the start-up mode: DC12V electric motor;

10, number of phases and connection: three-phase four-wire, star connection;

11, excitation / regulator: Brushless / AVR automatically;

12, diesel fuel consumption economy: ≤ 198g/kW · h;

13 Oil consumption: ≤ 1.0g/kW · h;
