Product Description

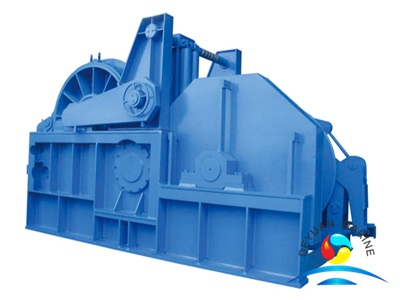

200 Ton / 2000KN Marine Hydraulic Driven Mooring Winches
This hydraulic mooring winches usually using for very big lifting capacity, install on seagoing vessels, with huge working load usually power by hydraulic power pack, this 200 ton mooring winch production must be as per drawing which design by designning institute and drawing approval by class socienty if required related certificate.
This 2000KN hydraulic driven mooring winch with compact design, mainly include single drum, winch base, gear box, hydraulic motor, small gearwheel, big gearwheel,main shaft, rachet stopper, clutch, hydraulic brake, wall plate, oil tank etc.
The mooring winches reach 200 ton required rope is wire rope, diameter for wire rope min. would be 56mm, if customers want mooring very long wire rope then automatic spooling device can be option to install for wire rope in line arrangment.
For marine mooring winch speed, as per mechanics principle, when the working load is bigger, the speed is smaller, so in case wanted high speed it is better to adjust a small working load on mooring drum.
How to choose a suitablewinch?
Purpose: mooring, towing, positioning or anchoring, or combined parts/all of above.
Rate load
Rated line speed
Drive, electric,hydraulic, etc.,
Drum qty and arrangement mode, side by side or waterfall
With/without end drum
Specical requirement if any ,ex. spooling device, hydraulic brake
More hydraulic mooring winches can be offer, mainly marine certificate can be offer, such as CCS,ABS,DNV,BV,RINA,BKI etc. Welcome contact with me if you want any winches!
Marine Mooring Winch Specification | |
| Drum Capacity | 1500m*56mm Φwire (12layers) |
| Mooring Winch Rated Pull | 200T*0~10.6m/min(1st *layer,low speed) |
| 30T*0~30m/min(1st layer,high speed) | |
| 133T*0~16m/min(6th layer,low speed) | |
| 20T*0~45m/min(6th layer,high speed) | |
| 94.5T*0~22.4m/min(top layer,low speed) | |
| 14.2T*0~63.5m/min(top layer,high speed) | |
| Mooring Winch Drum brake | Spring loaded,hydraulic release,with manual over ride |
| Mooring Winch Brake holding | 22.5ton(static 1st layer) |
| Mooring Winch Clutch | HYD.OPERATED MANUEL |
| Mooring Winch Control | Remote control and local control stand |
| Mooring Winch Drage Brake | 0~30T*0~100m/min(1st layer) |
| 0~20T*0~151m/min(MID Layer) | |
| 0~14.2T*0~212m/min(6th layer) | |
More 200TON marine mooring winch can be offered,pls contact us for more details.
